SDO HMI 2011-08-09 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.38 | 0.00 | 5.31 | 19.50 | 224.74 | -4.25 | 16.83 | 0.2426 | -459.1 | -518.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-09 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

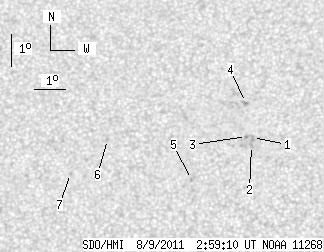

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.06 | 19.58 | 226.11 | -2.88 | 11.64 | 0.2357 | -834.0 | -783.1 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 19.33 | 226.09 | -2.91 | 11.98 | 0.2316 | -924.0 | -802.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 19.61 | 225.92 | -3.07 | 12.37 | 0.2368 | -1044.0 | -851.7 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 20.68 | 225.87 | -3.13 | 11.62 | 0.2547 | -1154.0 | -874.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 18.26 | 224.18 | -4.81 | 21.01 | 0.2233 | -907.0 | -711.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 19.47 | 221.42 | -7.57 | 28.51 | 0.2614 | 846.0 | 622.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 18.40 | 220.27 | -8.72 | 34.33 | 0.2563 | 803.0 | 558.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
