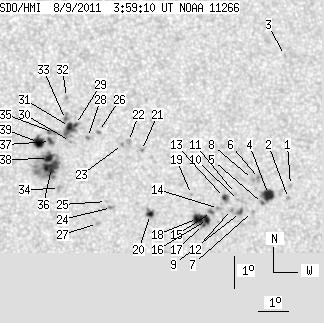

SDO HMI 2011-08-09 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.78 | 184.30 | 33.43 | 96.50 | 19.90 | 241.60 | 13.15 | 318.48 | 0.3238 | 0.6 | 252.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-09 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.87 | 19.31 | 247.19 | 18.75 | 307.22 | 0.3825 | -775.0 | -653.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 18.90 | 247.08 | 18.63 | 306.48 | 0.3775 | -801.0 | -658.5 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 23.40 | 247.53 | 19.09 | 314.93 | 0.4257 | 605.0 | 487.4 | |
| 9.49 | 14.27 | 5.06 | 7.60 | 19.05 | 246.42 | 17.97 | 307.73 | 0.3703 | -999.5 | -785.1 | |
| 0.99 | -4.00 | 0.53 | -4.00 | 18.78 | 246.18 | 17.74 | 307.44 | 0.3648 | -964.6 | 999999 | |
| 0.00 | 3.52 | 0.00 | 1.88 | 19.56 | 246.17 | 17.72 | 309.22 | 0.3718 | -751.0 | -668.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 18.54 | 245.82 | 17.37 | 307.42 | 0.3580 | -876.0 | -776.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 19.53 | 245.93 | 17.48 | 309.52 | 0.3686 | -779.0 | -728.9 | |
| 1.81 | 3.61 | 0.96 | 1.91 | 18.52 | 245.42 | 16.97 | 307.98 | 0.3526 | -892.8 | -887.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 18.90 | 245.39 | 16.94 | 308.90 | 0.3558 | -762.0 | -638.5 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 19.12 | 245.31 | 16.86 | 309.52 | 0.3569 | -600.0 | -496.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 18.62 | 245.12 | 16.68 | 308.67 | 0.3498 | -927.0 | -876.1 | |
| 2.26 | 4.43 | 1.19 | 2.34 | 19.00 | 244.93 | 16.48 | 309.87 | 0.3510 | -804.6 | -774.3 | |
| 0.00 | 2.08 | 0.00 | 1.10 | 18.67 | 244.69 | 16.25 | 309.46 | 0.3448 | -990.0 | -845.8 | |
| 1.54 | 2.71 | 0.81 | 1.43 | 18.55 | 244.45 | 16.00 | 309.58 | 0.3406 | -921.1 | -665.4 | |
| 3.25 | 18.61 | 1.71 | 9.78 | 18.34 | 244.30 | 15.85 | 309.32 | 0.3366 | -1078.6 | -823.0 | |
| 1.99 | -16.00 | 1.04 | -16.00 | 18.18 | 244.15 | 15.70 | 309.20 | 0.3332 | -1049.2 | 999999 | |
| 7.59 | -16.00 | 3.98 | -16.00 | 18.38 | 243.97 | 15.52 | 309.97 | 0.3328 | -1177.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 19.13 | 243.84 | 15.39 | 311.98 | 0.3388 | -829.0 | -643.5 | |
| 2.89 | 5.24 | 1.51 | 2.73 | 18.54 | 242.42 | 13.98 | 313.19 | 0.3155 | -1057.7 | -843.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 20.55 | 242.30 | 13.85 | 317.99 | 0.3365 | 692.0 | 600.4 | |
| 0.00 | 3.25 | 0.00 | 1.71 | 20.84 | 241.89 | 13.45 | 319.42 | 0.3355 | 758.0 | 651.0 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 20.75 | 241.68 | 13.24 | 319.66 | 0.3322 | 879.0 | 754.8 | |
| 0.00 | 2.80 | 0.00 | 1.46 | 18.79 | 241.16 | 12.71 | 316.40 | 0.3034 | -987.0 | -717.1 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 18.98 | 241.01 | 12.56 | 317.17 | 0.3039 | -535.0 | -437.0 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 21.18 | 240.92 | 12.47 | 322.13 | 0.3295 | 890.0 | 699.3 | |
| 0.00 | 2.26 | 0.00 | 1.17 | 18.30 | 240.66 | 12.21 | 316.30 | 0.2920 | 969.0 | 726.9 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 21.00 | 240.54 | 12.09 | 322.60 | 0.3234 | 876.0 | 663.5 | |
| 1.17 | 15.45 | 0.61 | 8.08 | 21.41 | 240.17 | 11.73 | 324.24 | 0.3252 | 634.7 | 907.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 20.88 | 239.96 | 11.52 | 323.67 | 0.3163 | 797.0 | 608.8 | |
| 3.34 | -29.00 | 1.75 | -29.00 | 21.36 | 239.97 | 11.52 | 324.59 | 0.3225 | 1084.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 22.27 | 239.94 | 11.50 | 326.35 | 0.3343 | 852.0 | 683.0 | |
| 1.26 | 3.43 | 0.66 | 1.80 | 21.58 | 239.85 | 11.41 | 325.28 | 0.3243 | 757.4 | 728.5 | |
| 0.00 | 3.07 | 0.00 | 1.59 | 19.42 | 239.49 | 11.05 | 321.69 | 0.2928 | 959.0 | 823.0 | |
| 0.00 | 6.14 | 0.00 | 3.21 | 21.18 | 239.42 | 10.98 | 325.52 | 0.3150 | 785.0 | 717.1 | |
| 10.75 | 59.36 | 5.58 | 30.80 | 20.08 | 239.28 | 10.83 | 323.66 | 0.2991 | 1207.2 | 635.8 | |
| 2.80 | 3.70 | 1.46 | 1.93 | 20.90 | 239.30 | 10.86 | 325.26 | 0.3101 | 1047.7 | 861.5 | |
| 4.43 | -36.00 | 2.30 | -36.00 | 20.37 | 239.20 | 10.75 | 324.45 | 0.3021 | 1108.2 | 999999 | |
| 8.22 | 10.30 | 4.28 | 5.36 | 20.87 | 238.90 | 10.46 | 326.19 | 0.3061 | 1012.8 | 650.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
