SDO HMI 2011-08-09 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.32 | 184.88 | 34.29 | 97.00 | 19.92 | 241.67 | 13.77 | 317.28 | 0.3310 | 33.2 | 222.5 | |
|
previous
or next observation for the same group /

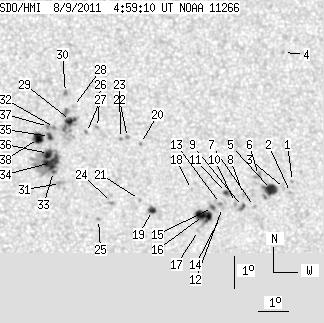

back to the solar disc SDO HMI 2011-08-09 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.63 | 19.28 | 247.26 | 19.36 | 306.36 | 0.3902 | -821.0 | -645.4 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 18.94 | 247.15 | 19.25 | 305.76 | 0.3859 | -901.0 | -713.3 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 19.08 | 246.96 | 19.06 | 306.29 | 0.3845 | -727.0 | -599.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 23.35 | 247.51 | 19.61 | 314.12 | 0.4310 | 846.0 | 653.4 | |
| 9.67 | 13.73 | 5.17 | 7.34 | 19.06 | 246.51 | 18.62 | 306.85 | 0.3786 | -1011.7 | -843.6 | |
| 0.00 | 4.61 | 0.00 | 2.46 | 19.51 | 246.13 | 18.23 | 308.38 | 0.3777 | -949.0 | -762.3 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 18.55 | 245.88 | 17.98 | 306.56 | 0.3660 | -874.0 | -695.8 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 18.93 | 245.55 | 17.65 | 307.92 | 0.3652 | -815.0 | -703.5 | |
| 1.08 | 3.07 | 0.58 | 1.63 | 18.56 | 245.48 | 17.58 | 307.17 | 0.3609 | -979.1 | -866.5 | |
| 0.00 | 2.26 | 0.00 | 1.20 | 18.69 | 245.26 | 17.36 | 307.80 | 0.3592 | -858.0 | -718.5 | |
| 1.81 | 4.52 | 0.96 | 2.40 | 19.01 | 244.99 | 17.09 | 308.94 | 0.3587 | -854.5 | -741.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 18.55 | 244.81 | 16.91 | 308.15 | 0.3521 | -835.0 | -616.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 18.68 | 244.75 | 16.85 | 308.53 | 0.3526 | -1045.0 | -853.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 18.21 | 244.67 | 16.77 | 307.55 | 0.3472 | -759.0 | -602.8 | |
| 1.72 | 20.87 | 0.91 | 11.00 | 18.56 | 244.47 | 16.57 | 308.69 | 0.3479 | -891.6 | -727.0 | |
| 12.38 | -15.00 | 6.52 | -15.00 | 18.32 | 244.15 | 16.25 | 308.63 | 0.3415 | -1165.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 17.86 | 243.94 | 16.04 | 307.85 | 0.3345 | -840.0 | -522.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 19.14 | 243.83 | 15.93 | 311.09 | 0.3455 | -801.0 | -705.2 | |
| 2.89 | 4.52 | 1.51 | 2.36 | 18.53 | 242.47 | 14.57 | 312.02 | 0.3225 | -1057.2 | -821.1 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 20.63 | 242.26 | 14.37 | 317.17 | 0.3430 | 768.0 | 669.9 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 18.88 | 242.07 | 14.17 | 313.62 | 0.3214 | -660.0 | -514.9 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 20.83 | 241.85 | 13.95 | 318.39 | 0.3408 | 806.0 | 674.8 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 20.80 | 241.61 | 13.71 | 318.80 | 0.3379 | 891.0 | 743.5 | |
| 0.00 | 2.08 | 0.00 | 1.08 | 18.81 | 241.14 | 13.24 | 315.31 | 0.3096 | -900.0 | -617.1 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 18.29 | 240.67 | 12.77 | 315.03 | 0.2983 | 937.0 | 781.1 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 21.16 | 240.87 | 12.98 | 321.04 | 0.3345 | 784.0 | 634.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 21.02 | 240.49 | 12.59 | 321.55 | 0.3287 | 853.0 | 681.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 21.84 | 240.13 | 12.23 | 323.94 | 0.3356 | 609.0 | 498.8 | |
| 5.87 | 26.02 | 3.08 | 13.63 | 21.41 | 239.99 | 12.09 | 323.40 | 0.3286 | 1020.4 | 787.8 | |
| 0.00 | 2.26 | 0.00 | 1.19 | 22.29 | 239.90 | 12.00 | 325.27 | 0.3392 | 857.0 | 732.2 | |
| 0.00 | 4.43 | 0.00 | 2.30 | 19.44 | 239.51 | 11.61 | 320.39 | 0.2989 | 986.0 | 790.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 21.20 | 239.44 | 11.54 | 324.23 | 0.3206 | 839.0 | 806.0 | |
| 1.08 | 54.03 | 0.56 | 28.08 | 19.82 | 239.30 | 11.41 | 321.71 | 0.3015 | 1037.5 | 654.2 | |
| 12.47 | -33.00 | 6.48 | -33.00 | 20.10 | 239.26 | 11.36 | 322.42 | 0.3047 | 1199.9 | 999999 | |
| 3.25 | 4.07 | 1.70 | 2.12 | 20.92 | 239.25 | 11.36 | 324.11 | 0.3151 | 1002.7 | 735.0 | |
| 4.52 | -33.00 | 2.35 | -33.00 | 20.39 | 239.18 | 11.28 | 323.20 | 0.3075 | 1107.8 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.09 | 21.23 | 239.25 | 11.35 | 324.75 | 0.3192 | 820.0 | 704.2 | |
| 8.58 | 9.94 | 4.47 | 5.18 | 20.86 | 238.89 | 10.99 | 324.87 | 0.3109 | 1030.6 | 700.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
