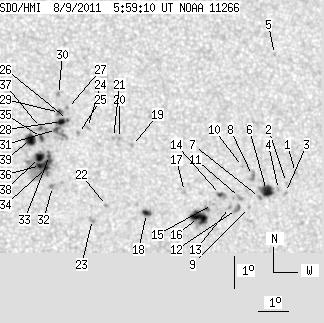

SDO HMI 2011-08-09 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.74 | 181.13 | 30.95 | 95.34 | 19.91 | 241.78 | 14.43 | 315.99 | 0.3384 | -26.6 | 196.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-09 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.59 | 19.60 | 247.64 | 20.29 | 305.87 | 0.4048 | -688.0 | -595.7 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 19.30 | 247.29 | 19.94 | 305.65 | 0.3978 | -741.0 | -581.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 18.99 | 247.22 | 19.87 | 305.07 | 0.3943 | -694.0 | -635.0 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 19.09 | 246.99 | 19.64 | 305.57 | 0.3922 | -844.0 | -535.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 23.33 | 247.45 | 20.10 | 313.44 | 0.4364 | 815.0 | 665.8 | |
| 9.31 | 12.83 | 5.00 | 6.89 | 19.07 | 246.58 | 19.23 | 306.06 | 0.3867 | -998.3 | -769.0 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 18.86 | 246.32 | 18.97 | 305.94 | 0.3815 | -1097.0 | -914.2 | |
| 0.00 | 5.24 | 0.00 | 2.81 | 19.56 | 246.16 | 18.81 | 307.67 | 0.3855 | -798.0 | -706.5 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 18.56 | 245.94 | 18.59 | 305.76 | 0.3740 | -814.0 | -574.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 19.85 | 245.86 | 18.51 | 308.73 | 0.3843 | -776.0 | -504.4 | |
| 0.00 | 2.89 | 0.00 | 1.54 | 18.89 | 245.64 | 18.29 | 306.90 | 0.3729 | -870.0 | -749.7 | |
| 0.00 | 4.79 | 0.00 | 2.55 | 18.52 | 245.50 | 18.15 | 306.25 | 0.3678 | -1124.0 | -853.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 18.59 | 245.27 | 17.92 | 306.73 | 0.3655 | -949.0 | -820.9 | |
| 1.90 | 5.06 | 1.01 | 2.69 | 19.00 | 245.01 | 17.66 | 308.05 | 0.3659 | -788.1 | -707.9 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 18.70 | 244.71 | 17.36 | 307.80 | 0.3592 | -694.0 | -656.1 | |
| 13.28 | 23.58 | 7.02 | 12.46 | 18.31 | 244.20 | 16.85 | 307.65 | 0.3491 | -1155.2 | -689.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 19.13 | 243.81 | 16.46 | 310.18 | 0.3520 | -933.0 | -690.3 | |
| 4.07 | 4.88 | 2.13 | 2.56 | 18.48 | 242.48 | 15.13 | 310.90 | 0.3290 | -1024.3 | -856.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 20.62 | 242.22 | 14.87 | 316.21 | 0.3485 | 910.0 | 731.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 20.85 | 241.81 | 14.45 | 317.46 | 0.3465 | 861.0 | 657.6 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 20.88 | 241.61 | 14.26 | 317.91 | 0.3448 | 795.0 | 694.4 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 18.77 | 241.18 | 13.83 | 314.01 | 0.3161 | -935.0 | -699.8 | |
| 0.00 | 2.98 | 0.00 | 1.55 | 18.34 | 240.69 | 13.34 | 313.98 | 0.3056 | 673.0 | 708.7 | |
| 0.00 | 2.17 | 0.00 | 1.14 | 21.22 | 240.77 | 13.42 | 320.25 | 0.3397 | 795.0 | 536.7 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 21.04 | 240.45 | 13.10 | 320.53 | 0.3342 | 828.0 | 643.7 | |
| 0.81 | 18.34 | 0.43 | 9.62 | 21.49 | 240.12 | 12.77 | 322.11 | 0.3364 | 845.7 | 784.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 21.83 | 240.15 | 12.80 | 322.72 | 0.3410 | 648.0 | 577.8 | |
| 3.98 | -26.00 | 2.09 | -26.00 | 21.43 | 239.92 | 12.56 | 322.43 | 0.3336 | 1068.0 | 999999 | |
| 2.26 | 3.61 | 1.19 | 1.90 | 21.71 | 239.87 | 12.52 | 323.07 | 0.3367 | 804.4 | 724.7 | |
| 0.00 | 1.99 | 0.00 | 1.05 | 22.28 | 239.89 | 12.54 | 324.10 | 0.3441 | 922.0 | 769.0 | |
| 1.99 | -26.00 | 1.04 | -26.00 | 21.18 | 239.73 | 12.38 | 322.35 | 0.3286 | 1166.7 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.27 | 19.40 | 239.45 | 12.10 | 319.16 | 0.3037 | 1053.0 | 917.4 | |
| 0.99 | 49.15 | 0.52 | 25.58 | 20.37 | 239.43 | 12.08 | 321.35 | 0.3154 | 763.9 | 730.0 | |
| 1.72 | -33.00 | 0.89 | -33.00 | 20.00 | 239.30 | 11.95 | 320.84 | 0.3094 | 1196.8 | 999999 | |
| 2.08 | 2.80 | 1.09 | 1.46 | 20.94 | 239.21 | 11.86 | 323.01 | 0.3203 | 1051.7 | 852.5 | |
| 1.90 | -33.00 | 0.99 | -33.00 | 20.06 | 239.11 | 11.75 | 321.42 | 0.3082 | 1381.6 | 999999 | |
| 0.81 | 7.50 | 0.43 | 3.93 | 21.26 | 239.20 | 11.85 | 323.65 | 0.3243 | 721.9 | 680.2 | |
| 5.33 | -33.00 | 2.78 | -33.00 | 20.32 | 239.09 | 11.74 | 321.99 | 0.3112 | 1110.9 | 999999 | |
| 8.31 | 11.48 | 4.34 | 5.99 | 20.89 | 238.84 | 11.49 | 323.75 | 0.3160 | 1040.2 | 346.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
