SDO HMI 2011-08-09 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.88 | 161.24 | 34.01 | 85.72 | 19.80 | 241.75 | 16.59 | 311.98 | 0.3626 | 6.0 | 194.9 | |
|
previous
or next observation for the same group /

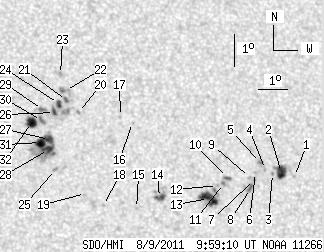

back to the solar disc SDO HMI 2011-08-09 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.54 | 18.89 | 247.43 | 22.27 | 302.18 | 0.4253 | -745.0 | -610.3 | |
| 9.76 | 13.19 | 5.32 | 7.20 | 19.03 | 246.99 | 21.84 | 302.93 | 0.4206 | -955.8 | -615.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 19.01 | 246.68 | 21.52 | 303.22 | 0.4163 | -1031.0 | -862.2 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 19.15 | 246.46 | 21.30 | 303.75 | 0.4144 | -857.0 | -673.2 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 19.37 | 246.31 | 21.15 | 304.39 | 0.4143 | -930.0 | -827.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 19.07 | 246.10 | 20.94 | 303.98 | 0.4091 | -785.0 | -557.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 18.85 | 246.04 | 20.88 | 303.59 | 0.4066 | -1002.0 | -907.6 | |
| 2.35 | 4.79 | 1.27 | 2.59 | 18.58 | 245.87 | 20.71 | 303.19 | 0.4021 | -929.5 | -859.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 18.92 | 245.87 | 20.72 | 303.92 | 0.4049 | -848.0 | -715.6 | |
| 1.90 | 3.16 | 1.02 | 1.70 | 18.95 | 245.12 | 19.96 | 304.87 | 0.3953 | -833.8 | -758.2 | |
| 0.00 | 1.99 | 0.00 | 1.07 | 18.77 | 244.96 | 19.81 | 304.66 | 0.3917 | -996.0 | -773.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 18.71 | 244.75 | 19.59 | 304.80 | 0.3885 | -668.0 | -606.6 | |
| 14.00 | 23.04 | 7.50 | 12.34 | 18.32 | 244.40 | 19.24 | 304.36 | 0.3806 | -1079.6 | -742.4 | |
| 4.70 | 12.20 | 2.49 | 6.48 | 18.41 | 242.76 | 17.60 | 306.78 | 0.3597 | -1055.1 | -628.7 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 18.09 | 241.95 | 16.79 | 307.21 | 0.3463 | 805.0 | 603.1 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 20.77 | 242.11 | 16.95 | 313.01 | 0.3743 | 466.0 | 486.5 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 20.97 | 241.72 | 16.56 | 314.04 | 0.3718 | 652.0 | 536.5 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 18.21 | 240.86 | 15.71 | 309.26 | 0.3335 | 842.0 | 697.0 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 18.60 | 240.30 | 15.14 | 311.17 | 0.3303 | 488.0 | 564.9 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 21.14 | 240.32 | 15.16 | 316.78 | 0.3576 | 674.0 | 518.1 | |
| 2.26 | 3.43 | 1.20 | 1.82 | 21.53 | 239.95 | 14.79 | 318.22 | 0.3580 | 866.6 | 530.0 | |
| 0.00 | 5.78 | 0.00 | 3.07 | 21.84 | 239.95 | 14.79 | 318.85 | 0.3617 | 759.0 | 675.1 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 22.35 | 239.84 | 14.68 | 320.04 | 0.3664 | 847.0 | 640.9 | |
| 3.34 | 13.91 | 1.77 | 7.36 | 21.44 | 239.67 | 14.51 | 318.57 | 0.3540 | 1011.0 | 726.6 | |
| 0.00 | 2.17 | 0.00 | 1.14 | 19.38 | 239.37 | 14.22 | 314.70 | 0.3273 | 954.0 | 778.4 | |
| 2.08 | -24.00 | 1.10 | -24.00 | 21.16 | 239.51 | 14.35 | 318.31 | 0.3490 | 1074.1 | 999999 | |
| 3.89 | 44.90 | 2.04 | 23.57 | 20.32 | 239.26 | 14.10 | 317.02 | 0.3366 | 958.0 | 710.3 | |
| 4.97 | -27.00 | 2.61 | -27.00 | 20.01 | 239.20 | 14.04 | 316.46 | 0.3323 | 1224.7 | 999999 | |
| 0.00 | 3.52 | 0.00 | 1.86 | 21.27 | 239.12 | 13.96 | 319.27 | 0.3460 | 879.0 | 741.1 | |
| 0.00 | 3.70 | 0.00 | 1.95 | 20.92 | 239.05 | 13.89 | 318.70 | 0.3412 | 1139.0 | 856.8 | |
| 6.32 | -27.00 | 3.32 | -27.00 | 20.23 | 238.95 | 13.79 | 317.43 | 0.3321 | 1120.6 | 999999 | |
| 8.31 | 9.49 | 4.37 | 4.99 | 20.87 | 238.71 | 13.55 | 319.26 | 0.3369 | 1061.7 | 622.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
