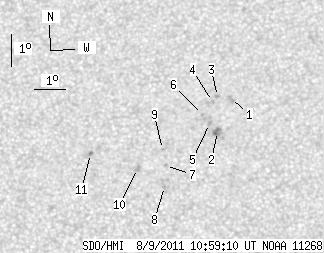

SDO HMI 2011-08-09 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.30 | 0.00 | 12.87 | 19.59 | 225.10 | 0.49 | 358.28 | 0.2318 | -766.7 | -673.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-09 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.07 | 0.00 | 2.08 | 20.62 | 226.35 | 1.74 | 353.43 | 0.2500 | -772.0 | -684.9 | |
| 0.00 | 6.23 | 0.00 | 3.17 | 19.59 | 225.92 | 1.31 | 354.64 | 0.2318 | -1217.0 | -953.0 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 20.69 | 225.93 | 1.32 | 355.04 | 0.2504 | -1070.0 | -715.0 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 20.53 | 225.77 | 1.16 | 355.60 | 0.2475 | -843.0 | -634.8 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 19.84 | 225.67 | 1.06 | 355.76 | 0.2357 | -950.0 | -773.6 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 20.13 | 225.44 | 0.83 | 356.74 | 0.2403 | -907.0 | -731.1 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 18.53 | 224.25 | -0.36 | 1.63 | 0.2128 | -954.0 | -726.5 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 17.88 | 224.22 | -0.39 | 1.87 | 0.2016 | -964.0 | -759.6 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 19.03 | 224.15 | -0.46 | 1.98 | 0.2213 | -954.0 | -712.9 | |
| 0.00 | 3.34 | 0.00 | 1.69 | 18.44 | 223.35 | -1.26 | 5.67 | 0.2121 | -812.0 | -711.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 18.90 | 221.84 | -2.77 | 11.86 | 0.2239 | 1009.0 | 802.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
