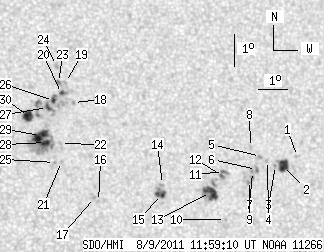

SDO HMI 2011-08-09 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.54 | 173.50 | 30.28 | 92.77 | 19.85 | 241.73 | 17.67 | 310.41 | 0.3763 | 0.6 | 163.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-09 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.00 | 19.30 | 247.71 | 23.65 | 301.66 | 0.4467 | -657.0 | -444.5 | |
| 9.21 | 12.01 | 5.07 | 6.61 | 19.04 | 247.18 | 23.12 | 301.64 | 0.4378 | -954.7 | -611.4 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 19.05 | 246.90 | 22.84 | 301.94 | 0.4342 | -1008.0 | -790.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 19.22 | 246.65 | 22.59 | 302.54 | 0.4320 | -790.0 | -633.7 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 19.36 | 246.42 | 22.37 | 303.04 | 0.4301 | -935.0 | -756.9 | |
| 0.00 | 2.62 | 0.00 | 1.43 | 18.96 | 246.23 | 22.17 | 302.42 | 0.4245 | -870.0 | -776.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 18.90 | 246.08 | 22.02 | 302.45 | 0.4221 | -933.0 | -749.8 | |
| 0.00 | 2.17 | 0.00 | 1.19 | 19.65 | 246.12 | 22.06 | 303.97 | 0.4283 | -772.0 | -604.2 | |
| 0.00 | 5.06 | 0.00 | 2.76 | 18.62 | 245.94 | 21.88 | 302.01 | 0.4182 | -747.0 | -787.2 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 17.45 | 244.97 | 20.91 | 300.45 | 0.3965 | -726.0 | -576.8 | |
| 1.35 | 5.96 | 0.74 | 3.23 | 18.94 | 245.08 | 21.03 | 303.61 | 0.4092 | -770.1 | -750.2 | |
| 0.99 | -11.00 | 0.54 | -11.00 | 18.82 | 245.00 | 20.94 | 303.44 | 0.4071 | -885.7 | 999999 | |
| 11.47 | 21.86 | 6.19 | 11.79 | 18.30 | 244.56 | 20.50 | 302.82 | 0.3973 | -1100.3 | -708.8 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 18.61 | 242.96 | 18.90 | 305.46 | 0.3785 | -681.0 | -567.6 | |
| 4.43 | 11.92 | 2.36 | 6.37 | 18.30 | 242.89 | 18.83 | 304.84 | 0.3750 | -1053.0 | -729.5 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 18.15 | 240.76 | 16.70 | 307.52 | 0.3457 | 847.0 | 726.8 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 18.28 | 240.64 | 16.58 | 308.01 | 0.3453 | 929.0 | 818.9 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 21.27 | 240.25 | 16.19 | 315.26 | 0.3706 | 691.0 | 546.9 | |
| 0.00 | 1.99 | 0.00 | 1.06 | 21.90 | 240.05 | 15.99 | 316.87 | 0.3753 | 652.0 | 533.4 | |
| 1.45 | 3.70 | 0.77 | 1.97 | 21.56 | 239.87 | 15.81 | 316.49 | 0.3696 | 855.7 | 641.0 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 19.43 | 239.65 | 15.59 | 312.33 | 0.3443 | 899.0 | 727.7 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 19.99 | 239.67 | 15.61 | 313.55 | 0.3504 | 706.0 | 521.7 | |
| 0.00 | 2.80 | 0.00 | 1.49 | 21.91 | 239.81 | 15.75 | 317.29 | 0.3728 | 923.0 | 709.3 | |
| 0.00 | 2.62 | 0.00 | 1.40 | 22.45 | 239.80 | 15.74 | 318.33 | 0.3788 | 766.0 | 596.3 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 19.41 | 239.41 | 15.35 | 312.69 | 0.3411 | 858.0 | 702.9 | |
| 2.26 | 28.45 | 1.20 | 15.10 | 21.35 | 239.58 | 15.52 | 316.57 | 0.3640 | 864.8 | 698.8 | |
| 2.35 | -26.00 | 1.25 | -26.00 | 21.13 | 239.35 | 15.29 | 316.53 | 0.3591 | 963.9 | 999999 | |
| 3.70 | 46.25 | 1.95 | 24.39 | 20.04 | 239.17 | 15.11 | 314.53 | 0.3450 | 1230.8 | 709.5 | |
| 11.29 | -28.00 | 5.96 | -28.00 | 20.26 | 239.02 | 14.97 | 315.28 | 0.3458 | 1047.0 | 999999 | |
| 8.04 | 9.30 | 4.25 | 4.92 | 20.87 | 238.68 | 14.62 | 317.20 | 0.3487 | 1064.0 | 721.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
