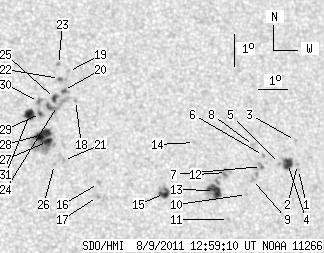

SDO HMI 2011-08-09 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.90 | 161.77 | 32.11 | 86.78 | 19.77 | 241.90 | 18.39 | 309.22 | 0.3844 | 12.1 | 101.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-09 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.45 | 18.84 | 247.62 | 24.11 | 300.32 | 0.4497 | -596.0 | -471.0 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 19.00 | 247.61 | 24.10 | 300.65 | 0.4506 | -623.0 | -517.4 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 19.75 | 247.65 | 24.15 | 302.09 | 0.4563 | -520.0 | -440.3 | |
| 7.95 | 10.30 | 4.40 | 5.70 | 19.05 | 247.26 | 23.75 | 301.05 | 0.4463 | -981.1 | -692.1 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 19.06 | 246.98 | 23.47 | 301.34 | 0.4426 | -897.0 | -731.2 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 19.33 | 246.46 | 22.95 | 302.39 | 0.4376 | -763.0 | -723.4 | |
| 0.36 | 6.95 | 0.20 | 3.82 | 18.99 | 246.34 | 22.83 | 301.82 | 0.4336 | -870.5 | -793.8 | |
| 0.00 | 2.62 | 0.00 | 1.44 | 19.66 | 246.16 | 22.65 | 303.36 | 0.4361 | -726.0 | -574.8 | |
| 0.00 | 2.80 | 0.00 | 1.53 | 18.60 | 245.97 | 22.47 | 301.36 | 0.4259 | -791.0 | -719.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 18.14 | 245.70 | 22.19 | 300.66 | 0.4191 | -720.0 | -623.0 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 17.39 | 244.99 | 21.48 | 299.73 | 0.4041 | -776.0 | -635.9 | |
| 0.00 | 5.78 | 0.00 | 3.15 | 18.85 | 245.11 | 21.60 | 302.80 | 0.4162 | -713.0 | -755.1 | |
| 11.56 | 21.86 | 6.26 | 11.83 | 18.31 | 244.62 | 21.11 | 302.15 | 0.4056 | -1099.0 | -649.4 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 19.83 | 244.13 | 20.63 | 305.96 | 0.4111 | -881.0 | -579.7 | |
| 6.41 | 10.12 | 3.44 | 5.42 | 18.28 | 242.91 | 19.40 | 304.07 | 0.3824 | -1001.8 | -707.1 | |
| 0.00 | 2.08 | 0.00 | 1.10 | 18.66 | 240.73 | 17.22 | 307.94 | 0.3571 | 715.0 | 650.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 18.26 | 240.65 | 17.14 | 307.10 | 0.3525 | 1024.0 | 830.9 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 21.28 | 240.24 | 16.73 | 314.40 | 0.3770 | 735.0 | 500.7 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 22.20 | 240.11 | 16.60 | 316.42 | 0.3854 | 644.0 | 422.6 | |
| 1.72 | 3.43 | 0.92 | 1.83 | 21.61 | 239.87 | 16.36 | 315.66 | 0.3763 | 841.0 | 692.1 | |
| 0.00 | 2.26 | 0.00 | 1.19 | 19.41 | 239.63 | 16.12 | 311.39 | 0.3506 | 845.0 | 567.8 | |
| 1.45 | 1.90 | 0.77 | 1.01 | 21.99 | 239.78 | 16.27 | 316.56 | 0.3794 | 719.4 | 793.0 | |
| 0.00 | 1.81 | 0.00 | 0.97 | 22.43 | 239.80 | 16.29 | 317.38 | 0.3845 | 808.0 | 680.8 | |
| 0.00 | 13.46 | 0.00 | 7.17 | 21.14 | 239.61 | 16.10 | 315.14 | 0.3683 | 600.0 | 744.8 | |
| 2.62 | 4.25 | 1.40 | 2.26 | 21.36 | 239.53 | 16.03 | 315.73 | 0.3699 | 846.5 | 753.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 19.30 | 239.32 | 15.81 | 311.65 | 0.3456 | 787.0 | 625.8 | |
| 5.69 | 41.73 | 3.01 | 22.05 | 20.02 | 239.15 | 15.65 | 313.55 | 0.3511 | 1237.3 | 654.7 | |
| 11.29 | -27.00 | 5.97 | -27.00 | 20.25 | 239.01 | 15.50 | 314.29 | 0.3518 | 1046.4 | 999999 | |
| 1.63 | 3.52 | 0.86 | 1.87 | 20.91 | 239.01 | 15.50 | 315.69 | 0.3589 | 928.7 | 755.6 | |
| 1.45 | 3.16 | 0.77 | 1.68 | 21.28 | 238.98 | 15.47 | 316.51 | 0.3628 | 780.0 | 755.3 | |
| 7.77 | 9.57 | 4.11 | 5.07 | 20.89 | 238.64 | 15.13 | 316.30 | 0.3545 | 1042.6 | 686.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
