SDO HMI 2011-08-09 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.67 | 0.00 | 12.47 | -16.29 | 244.11 | 20.60 | 221.80 | 0.5107 | 28.6 | 81.4 | |
|
previous
or next observation for the same group /

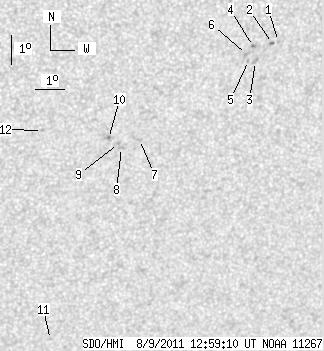

back to the solar disc SDO HMI 2011-08-09 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.63 | -14.43 | 246.97 | 23.46 | 228.15 | 0.5197 | 577.0 | 458.8 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -14.49 | 246.77 | 23.26 | 227.83 | 0.5180 | 892.0 | 777.9 | |
| 0.00 | 2.80 | 0.00 | 1.62 | -15.05 | 246.25 | 22.75 | 226.37 | 0.5179 | 848.0 | 715.1 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -14.55 | 246.13 | 22.62 | 226.94 | 0.5116 | 945.0 | 758.2 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -15.00 | 246.01 | 22.50 | 226.13 | 0.5148 | 830.0 | 680.7 | |
| 0.00 | 3.16 | 0.00 | 1.82 | -14.81 | 245.92 | 22.41 | 226.30 | 0.5119 | 887.0 | 662.1 | |
| 0.00 | 2.17 | 0.00 | 1.24 | -17.46 | 242.59 | 19.08 | 218.13 | 0.5071 | -655.0 | -519.0 | |
| 0.00 | 2.53 | 0.00 | 1.45 | -17.70 | 242.01 | 18.50 | 216.97 | 0.5046 | -733.0 | -583.4 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -17.57 | 241.89 | 18.38 | 216.97 | 0.5020 | -846.0 | -641.8 | |
| 0.00 | 2.26 | 0.00 | 1.29 | -17.39 | 241.54 | 18.03 | 216.67 | 0.4966 | -940.0 | -801.4 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -24.21 | 240.38 | 16.87 | 207.73 | 0.5710 | -656.0 | -501.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -17.05 | 239.31 | 15.80 | 213.56 | 0.4729 | -806.0 | -575.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
