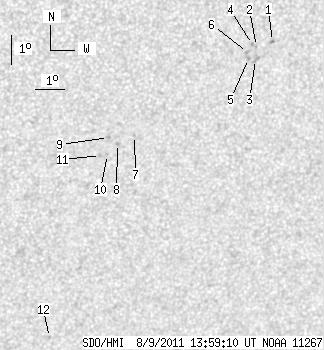

SDO HMI 2011-08-09 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.69 | 0.00 | 10.24 | -16.32 | 244.35 | 21.40 | 222.91 | 0.5193 | 8.2 | 166.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-09 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.00 | -14.45 | 246.76 | 23.80 | 228.54 | 0.5236 | 874.0 | 792.1 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -14.58 | 246.23 | 23.27 | 227.69 | 0.5191 | 831.0 | 670.8 | |
| 0.00 | 3.07 | 0.00 | 1.78 | -15.01 | 246.24 | 23.29 | 227.09 | 0.5234 | 800.0 | 706.3 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -14.51 | 246.08 | 23.13 | 227.62 | 0.5168 | 918.0 | 717.8 | |
| 0.00 | 1.99 | 0.00 | 1.15 | -14.96 | 246.00 | 23.04 | 226.86 | 0.5203 | 797.0 | 665.5 | |
| 0.00 | 2.26 | 0.00 | 1.31 | -14.77 | 245.94 | 22.98 | 227.07 | 0.5177 | 837.0 | 682.1 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -17.34 | 242.39 | 19.44 | 218.79 | 0.5090 | -773.0 | -571.2 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -17.59 | 241.85 | 18.89 | 217.69 | 0.5068 | -855.0 | -678.7 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -17.38 | 241.52 | 18.56 | 217.48 | 0.5013 | -1029.0 | -882.0 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -17.94 | 241.55 | 18.59 | 216.81 | 0.5082 | -708.0 | -654.5 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -17.97 | 241.31 | 18.36 | 216.44 | 0.5064 | -852.0 | -641.5 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -24.16 | 240.34 | 17.38 | 208.48 | 0.5738 | -741.0 | -547.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
