SDO HMI 2011-08-09 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.30 | 0.00 | 12.37 | -15.82 | 244.62 | 22.22 | 224.54 | 0.5218 | 162.2 | 151.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-09 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

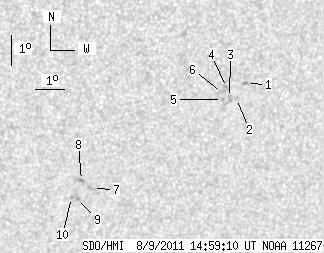

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.07 | 0.00 | 1.79 | -14.44 | 246.83 | 24.43 | 229.27 | 0.5305 | 883.0 | 633.4 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -14.92 | 246.54 | 24.14 | 228.24 | 0.5318 | 501.0 | 473.4 | |
| 0.00 | 2.44 | 0.00 | 1.42 | -14.87 | 246.30 | 23.89 | 228.02 | 0.5287 | 774.0 | 604.6 | |
| 0.00 | 2.26 | 0.00 | 1.31 | -14.54 | 246.15 | 23.75 | 228.33 | 0.5239 | 881.0 | 710.8 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -14.93 | 246.06 | 23.66 | 227.66 | 0.5266 | 837.0 | 649.6 | |
| 0.00 | 2.80 | 0.00 | 1.63 | -14.70 | 246.00 | 23.60 | 227.92 | 0.5237 | 808.0 | 628.8 | |
| 0.00 | 3.34 | 0.00 | 1.93 | -17.68 | 241.95 | 19.55 | 218.52 | 0.5139 | -531.0 | -621.2 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -17.40 | 241.55 | 19.14 | 218.30 | 0.5069 | -983.0 | -838.2 | |
| 0.00 | 2.08 | 0.00 | 1.20 | -17.99 | 241.48 | 19.07 | 217.45 | 0.5132 | -757.0 | -642.9 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -17.95 | 241.27 | 18.87 | 217.20 | 0.5108 | -791.0 | -659.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
