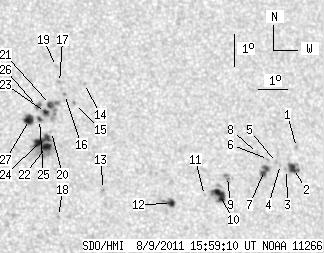

SDO HMI 2011-08-09 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.88 | 136.57 | 30.31 | 74.00 | 19.85 | 241.81 | 19.96 | 307.33 | 0.4048 | 37.2 | 155.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-09 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.02 | 19.67 | 247.73 | 25.88 | 300.43 | 0.4786 | -766.0 | -518.2 | |
| 6.05 | 9.39 | 3.39 | 5.27 | 19.02 | 247.51 | 25.66 | 299.35 | 0.4716 | -939.7 | -751.6 | |
| 0.00 | 1.99 | 0.00 | 1.11 | 19.00 | 247.26 | 25.41 | 299.52 | 0.4681 | -967.0 | -610.0 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 19.17 | 247.07 | 25.22 | 300.00 | 0.4667 | -738.0 | -528.4 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 19.24 | 246.94 | 25.09 | 300.24 | 0.4653 | -676.0 | -500.9 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 19.34 | 246.67 | 24.82 | 300.68 | 0.4625 | -807.0 | -662.1 | |
| 5.96 | 7.13 | 3.32 | 3.97 | 19.01 | 246.48 | 24.63 | 300.18 | 0.4577 | -945.3 | -796.6 | |
| 0.00 | 2.17 | 0.00 | 1.21 | 19.55 | 246.32 | 24.47 | 301.40 | 0.4591 | -694.0 | -575.0 | |
| 0.00 | 3.43 | 0.00 | 1.89 | 18.88 | 245.16 | 23.31 | 301.12 | 0.4391 | -782.0 | -777.6 | |
| 9.66 | 16.70 | 5.30 | 9.16 | 18.33 | 244.80 | 22.95 | 300.32 | 0.4305 | -1031.4 | -797.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 18.32 | 244.27 | 22.43 | 300.80 | 0.4234 | -505.0 | -429.7 | |
| 3.88 | 8.04 | 2.10 | 4.35 | 18.12 | 243.11 | 21.26 | 301.55 | 0.4061 | -1020.1 | -730.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 18.64 | 240.85 | 19.00 | 305.37 | 0.3800 | 957.0 | 770.9 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 21.97 | 240.63 | 18.78 | 312.68 | 0.4078 | 753.0 | 608.2 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 21.35 | 240.20 | 18.35 | 312.07 | 0.3967 | 764.0 | 580.5 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 21.65 | 239.89 | 18.04 | 313.11 | 0.3960 | 940.0 | 787.0 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 22.03 | 239.77 | 17.92 | 314.04 | 0.3985 | 823.0 | 649.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 17.85 | 239.25 | 17.40 | 305.72 | 0.3522 | -657.0 | -410.2 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 22.54 | 239.73 | 17.88 | 315.07 | 0.4033 | 744.0 | 587.0 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 20.50 | 239.31 | 17.46 | 311.64 | 0.3776 | 500.0 | 398.3 | |
| 3.34 | 17.79 | 1.79 | 9.54 | 21.35 | 239.37 | 17.52 | 313.28 | 0.3869 | 857.2 | 723.1 | |
| 5.33 | 39.45 | 2.84 | 21.02 | 20.04 | 239.08 | 17.23 | 310.99 | 0.3703 | 1275.9 | 674.9 | |
| 2.62 | -21.00 | 1.40 | -21.00 | 21.10 | 239.17 | 17.32 | 313.09 | 0.3820 | 1049.8 | 999999 | |
| 9.57 | -22.00 | 5.10 | -22.00 | 20.23 | 238.93 | 17.09 | 311.63 | 0.3704 | 996.5 | 999999 | |
| 1.53 | 2.35 | 0.82 | 1.25 | 20.89 | 238.94 | 17.09 | 313.01 | 0.3772 | 920.2 | 918.0 | |
| 1.35 | 3.70 | 0.73 | 1.98 | 21.30 | 238.92 | 17.07 | 313.88 | 0.3812 | 819.3 | 698.2 | |
| 6.59 | 8.40 | 3.52 | 4.48 | 20.90 | 238.60 | 16.75 | 313.57 | 0.3733 | 1051.8 | 749.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
