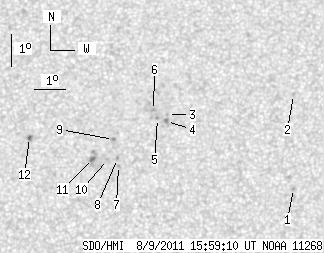

SDO HMI 2011-08-09 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.35 | 24.36 | 0.69 | 12.40 | 18.92 | 224.86 | 3.01 | 347.58 | 0.2274 | -817.5 | -715.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-09 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.69 | 17.45 | 229.96 | 8.11 | 325.26 | 0.2373 | -844.0 | -650.9 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 20.37 | 230.10 | 8.25 | 331.11 | 0.2798 | -788.0 | -600.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 19.79 | 225.98 | 4.13 | 343.80 | 0.2441 | -594.0 | -447.2 | |
| 0.00 | 2.89 | 0.00 | 1.47 | 19.57 | 225.94 | 4.09 | 343.68 | 0.2403 | -1208.0 | -902.8 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 19.67 | 225.65 | 3.80 | 344.88 | 0.2406 | -1006.0 | -833.7 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 19.92 | 225.53 | 3.68 | 345.62 | 0.2442 | -979.0 | -884.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 18.21 | 224.37 | 2.52 | 348.54 | 0.2114 | -976.0 | -782.0 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 18.43 | 224.34 | 2.49 | 348.88 | 0.2150 | -914.0 | -702.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 19.02 | 224.22 | 2.37 | 349.91 | 0.2245 | -1044.0 | -857.8 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 18.40 | 224.02 | 2.17 | 350.26 | 0.2135 | -801.0 | -678.6 | |
| 0.00 | 7.40 | 0.00 | 3.75 | 18.43 | 223.57 | 1.72 | 352.26 | 0.2129 | -1073.0 | -756.5 | |
| 1.35 | 1.99 | 0.69 | 1.01 | 19.09 | 221.52 | -0.33 | 1.40 | 0.2222 | 971.5 | 876.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
