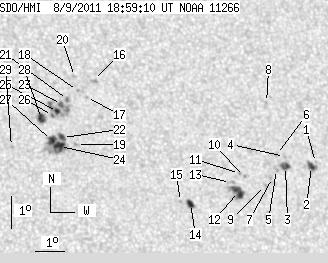

SDO HMI 2011-08-09 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.65 | 124.09 | 26.13 | 67.97 | 19.91 | 241.75 | 21.56 | 305.50 | 0.4254 | 33.3 | 206.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-09 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.19 | 19.12 | 247.88 | 27.70 | 297.99 | 0.4993 | -427.0 | -481.1 | |
| 3.61 | 6.05 | 2.06 | 3.45 | 19.00 | 247.72 | 27.53 | 297.89 | 0.4964 | -945.0 | -779.7 | |
| 5.14 | 6.23 | 2.91 | 3.52 | 19.05 | 246.78 | 26.60 | 298.65 | 0.4842 | -939.2 | -800.9 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 19.36 | 246.80 | 26.62 | 299.23 | 0.4863 | -750.0 | -570.0 | |
| 0.00 | 2.08 | 0.00 | 1.17 | 18.97 | 246.45 | 26.26 | 298.76 | 0.4793 | -833.0 | -673.3 | |
| 0.00 | 2.26 | 0.00 | 1.28 | 19.44 | 246.53 | 26.34 | 299.59 | 0.4832 | -709.0 | -520.4 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 18.73 | 246.26 | 26.08 | 298.43 | 0.4754 | -543.0 | -574.0 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 21.07 | 246.47 | 26.28 | 302.70 | 0.4929 | -641.0 | -440.9 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 18.49 | 245.98 | 25.79 | 298.19 | 0.4700 | -627.0 | -539.1 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 18.81 | 245.28 | 25.09 | 299.37 | 0.4626 | -741.0 | -674.7 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 18.91 | 245.12 | 24.93 | 299.71 | 0.4610 | -679.0 | -600.4 | |
| 8.48 | 14.62 | 4.72 | 8.13 | 18.35 | 245.00 | 24.81 | 298.69 | 0.4559 | -1015.0 | -856.5 | |
| 0.00 | 2.71 | 0.00 | 1.50 | 18.64 | 244.76 | 24.57 | 299.48 | 0.4545 | -470.0 | -509.8 | |
| 4.24 | 5.14 | 2.33 | 2.82 | 18.05 | 243.27 | 23.08 | 299.58 | 0.4304 | -912.8 | -585.8 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 18.13 | 242.93 | 22.75 | 300.06 | 0.4264 | -791.0 | -538.7 | |
| 0.00 | 2.35 | 0.00 | 1.28 | 22.02 | 240.47 | 20.28 | 310.74 | 0.4259 | 660.0 | 612.2 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 21.49 | 240.15 | 19.96 | 310.14 | 0.4172 | 766.0 | 619.4 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 21.73 | 239.87 | 19.68 | 310.95 | 0.4160 | 686.0 | 614.3 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 20.04 | 239.60 | 19.42 | 307.87 | 0.3973 | 751.0 | 559.3 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 22.17 | 239.83 | 19.64 | 311.87 | 0.4197 | 692.0 | 489.7 | |
| 0.00 | 1.99 | 0.00 | 1.08 | 21.45 | 239.48 | 19.30 | 310.94 | 0.4088 | 868.0 | 743.3 | |
| 3.25 | 34.21 | 1.75 | 18.38 | 20.27 | 239.15 | 18.97 | 308.97 | 0.3938 | 840.3 | 691.9 | |
| 2.71 | 23.65 | 1.47 | 12.79 | 21.30 | 239.25 | 19.07 | 310.95 | 0.4047 | 896.6 | 749.4 | |
| 6.95 | -22.00 | 3.74 | -22.00 | 19.99 | 239.02 | 18.83 | 308.57 | 0.3895 | 1210.6 | 999999 | |
| 2.17 | -23.00 | 1.17 | -23.00 | 21.09 | 239.09 | 18.90 | 310.75 | 0.4006 | 1139.5 | 999999 | |
| 0.99 | -23.00 | 0.54 | -23.00 | 20.97 | 238.90 | 18.71 | 310.76 | 0.3972 | 992.2 | 999999 | |
| 4.78 | -22.00 | 2.57 | -22.00 | 20.19 | 238.77 | 18.58 | 309.33 | 0.3882 | 1108.7 | 999999 | |
| 5.33 | 6.59 | 2.87 | 3.55 | 20.89 | 238.51 | 18.33 | 311.15 | 0.3917 | 1045.4 | 878.9 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 20.05 | 237.39 | 17.20 | 311.03 | 0.3699 | 820.0 | 620.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
