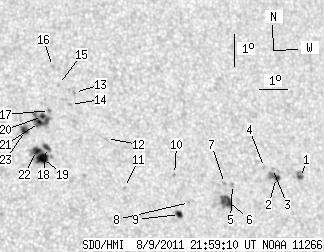

SDO HMI 2011-08-09 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.53 | 96.34 | 22.43 | 53.36 | 19.91 | 241.68 | 23.15 | 303.77 | 0.4457 | 76.6 | 245.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-09 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.26 | 4.87 | 1.31 | 2.83 | 18.95 | 247.95 | 29.43 | 296.52 | 0.5214 | -909.9 | -872.0 | |
| 2.98 | 7.04 | 1.71 | 4.05 | 19.00 | 247.08 | 28.55 | 297.16 | 0.5100 | -939.7 | -906.9 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 19.29 | 246.99 | 28.46 | 297.74 | 0.5103 | -616.0 | -506.2 | |
| 0.00 | 1.44 | 0.00 | 0.83 | 19.33 | 246.70 | 28.18 | 298.02 | 0.5068 | -708.0 | -590.9 | |
| 0.00 | 1.71 | 0.00 | 0.97 | 18.86 | 245.45 | 26.93 | 298.02 | 0.4875 | -786.0 | -604.4 | |
| 9.75 | 12.91 | 5.50 | 7.28 | 18.38 | 245.16 | 26.63 | 297.31 | 0.4807 | -944.9 | -675.0 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 18.91 | 245.17 | 26.65 | 298.32 | 0.4840 | -704.0 | -535.0 | |
| 0.00 | 0.54 | 0.00 | 0.30 | 18.38 | 243.84 | 25.31 | 298.31 | 0.4627 | -763.0 | -553.5 | |
| 3.16 | 4.15 | 1.76 | 2.31 | 18.02 | 243.43 | 24.90 | 297.92 | 0.4550 | -854.7 | -711.8 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 19.27 | 243.45 | 24.92 | 300.40 | 0.4631 | -802.0 | -702.9 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 18.94 | 241.64 | 23.11 | 301.39 | 0.4367 | -683.0 | -469.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 20.49 | 241.24 | 22.72 | 304.92 | 0.4429 | 790.0 | 645.5 | |
| 0.00 | 1.71 | 0.00 | 0.95 | 21.98 | 240.35 | 21.82 | 308.77 | 0.4440 | 792.0 | 616.5 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 21.61 | 240.15 | 21.62 | 308.29 | 0.4383 | 805.0 | 653.2 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 22.25 | 239.83 | 21.30 | 309.90 | 0.4401 | 487.0 | 393.8 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 22.83 | 239.71 | 21.19 | 311.11 | 0.4439 | 676.0 | 559.6 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 21.45 | 239.39 | 20.86 | 308.88 | 0.4276 | 858.0 | 670.4 | |
| 2.71 | 3.88 | 1.47 | 2.11 | 20.29 | 239.12 | 20.59 | 306.90 | 0.4142 | 789.6 | 657.6 | |
| 8.30 | 22.02 | 4.50 | 11.94 | 19.95 | 238.93 | 20.41 | 306.42 | 0.4090 | 1165.0 | 810.2 | |
| 1.53 | 18.23 | 0.84 | 9.95 | 21.27 | 239.12 | 20.59 | 308.86 | 0.4227 | 895.4 | 849.0 | |
| 1.90 | -20.00 | 1.03 | -20.00 | 21.08 | 238.99 | 20.46 | 308.66 | 0.4195 | 1153.0 | 999999 | |
| 3.70 | -19.00 | 2.01 | -19.00 | 20.21 | 238.76 | 20.23 | 307.17 | 0.4090 | 1057.3 | 999999 | |
| 4.24 | 7.22 | 2.30 | 3.92 | 20.85 | 238.47 | 19.94 | 308.85 | 0.4110 | 1044.1 | 722.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
