SDO HMI 2011-08-09 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.16 | 0.00 | 7.89 | -16.00 | 244.40 | 25.88 | 228.54 | 0.5626 | 60.9 | 54.3 | |
|
previous
or next observation for the same group /

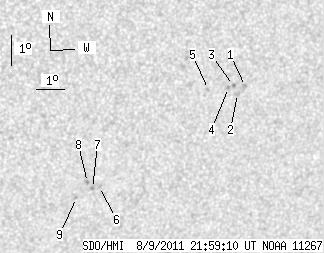

back to the solar disc SDO HMI 2011-08-09 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.93 | -14.67 | 246.77 | 28.25 | 232.94 | 0.5760 | 636.0 | 405.7 | |
| 0.00 | 2.62 | 0.00 | 1.58 | -14.88 | 246.52 | 27.99 | 232.38 | 0.5748 | 606.0 | 533.4 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -14.61 | 246.34 | 27.81 | 232.59 | 0.5706 | 794.0 | 698.1 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -14.67 | 246.17 | 27.64 | 232.34 | 0.5691 | 897.0 | 770.2 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -14.70 | 245.46 | 26.94 | 231.59 | 0.5614 | 786.0 | 602.5 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -17.71 | 242.06 | 23.54 | 223.64 | 0.5533 | -766.0 | -603.0 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -17.77 | 241.82 | 23.30 | 223.28 | 0.5515 | -758.0 | -617.6 | |
| 0.00 | 1.99 | 0.00 | 1.17 | -17.56 | 241.62 | 23.10 | 223.31 | 0.5473 | -944.0 | -778.9 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -18.04 | 241.31 | 22.78 | 222.30 | 0.5492 | -703.0 | -618.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
