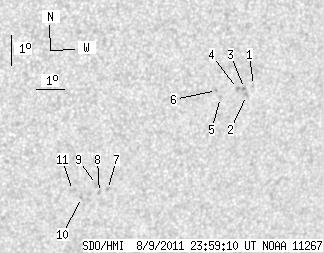

SDO HMI 2011-08-09 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.14 | 0.00 | 10.33 | -16.12 | 244.01 | 26.59 | 229.12 | 0.5714 | 78.5 | 52.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-09 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.61 | -14.56 | 246.76 | 29.34 | 234.11 | 0.5876 | 704.0 | 507.9 | |
| 0.00 | 2.35 | 0.00 | 1.43 | -14.87 | 246.56 | 29.14 | 233.48 | 0.5878 | 607.0 | 525.9 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -14.64 | 246.45 | 29.03 | 233.71 | 0.5847 | 814.0 | 695.9 | |
| 0.00 | 1.90 | 0.00 | 1.15 | -14.63 | 246.20 | 28.78 | 233.49 | 0.5817 | 865.0 | 718.0 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -14.89 | 245.63 | 28.21 | 232.57 | 0.5773 | 666.0 | 513.5 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -14.65 | 245.45 | 28.03 | 232.74 | 0.5734 | 817.0 | 660.8 | |
| 0.00 | 1.53 | 0.00 | 0.92 | -17.72 | 242.04 | 24.62 | 224.89 | 0.5644 | -712.0 | -538.2 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -17.81 | 241.77 | 24.35 | 224.47 | 0.5625 | -749.0 | -636.4 | |
| 0.00 | 2.71 | 0.00 | 1.61 | -17.54 | 241.63 | 24.21 | 224.65 | 0.5584 | -867.0 | -631.1 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -17.95 | 241.16 | 23.74 | 223.57 | 0.5578 | -758.0 | -595.8 | |
| 0.00 | 1.90 | 0.00 | 1.12 | -17.70 | 240.81 | 23.39 | 223.48 | 0.5518 | -524.0 | -465.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
