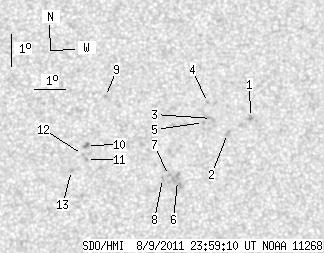

SDO HMI 2011-08-09 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 32.03 | 0.00 | 16.39 | 19.03 | 224.12 | 6.70 | 333.70 | 0.2486 | -247.2 | -410.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-09 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.53 | 0.00 | 1.31 | 20.02 | 226.77 | 9.35 | 327.28 | 0.2837 | -894.0 | -763.0 | |
| 0.00 | 2.89 | 0.00 | 1.49 | 19.53 | 225.99 | 8.57 | 328.49 | 0.2699 | -868.0 | -707.1 | |
| 0.00 | 3.79 | 0.00 | 1.95 | 20.01 | 225.50 | 8.07 | 330.89 | 0.2725 | -760.0 | -765.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 20.51 | 225.39 | 7.97 | 332.13 | 0.2790 | -799.0 | -629.5 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 19.88 | 225.23 | 7.81 | 331.47 | 0.2686 | -929.0 | -757.0 | |
| 0.00 | 9.39 | 0.00 | 4.78 | 18.09 | 224.31 | 6.88 | 330.84 | 0.2349 | -637.0 | -751.6 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 18.25 | 224.02 | 6.60 | 332.17 | 0.2349 | -762.0 | -663.5 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 18.16 | 223.83 | 6.40 | 332.69 | 0.2320 | -690.0 | -629.5 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 20.74 | 222.07 | 4.65 | 343.06 | 0.2612 | -751.0 | -636.0 | |
| 0.00 | 3.16 | 0.00 | 1.61 | 19.21 | 221.41 | 3.99 | 343.57 | 0.2333 | 1186.0 | 891.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 18.77 | 221.40 | 3.98 | 343.03 | 0.2261 | 908.0 | 714.4 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 18.93 | 221.28 | 3.85 | 343.74 | 0.2281 | 839.0 | 629.6 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 18.43 | 220.91 | 3.49 | 344.59 | 0.2183 | 944.0 | 754.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
