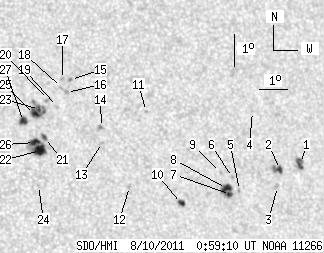

SDO HMI 2011-08-10 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.88 | 102.47 | 25.76 | 57.55 | 19.90 | 241.91 | 25.04 | 301.95 | 0.4700 | 215.8 | 238.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-10 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.51 | 8.13 | 3.25 | 4.80 | 19.06 | 248.14 | 31.27 | 295.61 | 0.5462 | -754.0 | -699.8 | |
| 2.98 | 5.96 | 1.74 | 3.49 | 18.92 | 247.36 | 30.49 | 295.79 | 0.5352 | -832.3 | -859.9 | |
| 0.00 | 2.26 | 0.00 | 1.32 | 18.40 | 247.15 | 30.28 | 294.99 | 0.5299 | -734.0 | -615.1 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 20.78 | 246.71 | 29.83 | 299.46 | 0.5363 | -649.0 | -513.5 | |
| 0.00 | 1.35 | 0.00 | 0.78 | 18.35 | 245.74 | 28.87 | 295.73 | 0.5107 | -694.0 | -543.7 | |
| 0.00 | 1.35 | 0.00 | 0.78 | 18.76 | 245.56 | 28.69 | 296.61 | 0.5104 | -656.0 | -480.4 | |
| 2.17 | 12.73 | 1.24 | 7.30 | 18.24 | 245.39 | 28.52 | 295.75 | 0.5054 | -693.9 | -593.3 | |
| 6.50 | -7.00 | 3.73 | -7.00 | 18.43 | 245.28 | 28.41 | 296.18 | 0.5049 | -831.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 18.94 | 245.15 | 28.28 | 297.21 | 0.5059 | -471.0 | -428.0 | |
| 3.07 | 3.52 | 1.73 | 1.99 | 18.05 | 243.58 | 26.71 | 296.59 | 0.4799 | -873.1 | -688.8 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 20.97 | 242.84 | 25.97 | 302.72 | 0.4879 | 719.0 | 551.2 | |
| 0.00 | 1.81 | 0.00 | 1.01 | 18.66 | 241.83 | 24.96 | 299.14 | 0.4596 | -867.0 | -635.5 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 20.07 | 241.10 | 24.23 | 302.57 | 0.4593 | 796.0 | 632.1 | |
| 0.00 | 2.98 | 0.00 | 1.66 | 20.54 | 241.14 | 24.27 | 303.44 | 0.4632 | 793.0 | 691.0 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 22.09 | 240.31 | 23.44 | 307.19 | 0.4645 | 747.0 | 634.1 | |
| 0.00 | 1.81 | 0.00 | 1.01 | 21.69 | 240.09 | 23.22 | 306.67 | 0.4586 | 967.0 | 728.2 | |
| 0.00 | 2.08 | 0.00 | 1.16 | 22.11 | 240.02 | 23.15 | 307.51 | 0.4611 | 608.0 | 498.7 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 21.85 | 239.94 | 23.07 | 307.13 | 0.4581 | 858.0 | 679.5 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 21.26 | 239.70 | 22.83 | 306.27 | 0.4504 | 460.0 | 359.6 | |
| 0.00 | 2.26 | 0.00 | 1.25 | 21.50 | 239.42 | 22.55 | 307.02 | 0.4487 | 711.0 | 606.8 | |
| 2.17 | 2.80 | 1.19 | 1.54 | 20.31 | 239.09 | 22.22 | 305.06 | 0.4351 | 705.4 | 707.0 | |
| 9.21 | 22.57 | 5.05 | 12.37 | 19.91 | 238.89 | 22.02 | 304.46 | 0.4294 | 1103.5 | 737.6 | |
| 0.90 | 16.25 | 0.50 | 8.96 | 21.20 | 239.06 | 22.19 | 306.84 | 0.4417 | 968.6 | 786.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 18.83 | 238.67 | 21.80 | 302.44 | 0.4182 | 765.0 | 472.0 | |
| 3.34 | -23.00 | 1.84 | -23.00 | 21.05 | 238.86 | 21.99 | 306.77 | 0.4380 | 1108.7 | 999999 | |
| 5.15 | -22.00 | 2.82 | -22.00 | 20.17 | 238.72 | 21.85 | 305.17 | 0.4292 | 932.2 | 999999 | |
| 4.88 | 5.60 | 2.67 | 3.07 | 20.84 | 238.44 | 21.57 | 306.84 | 0.4311 | 1015.4 | 798.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
