SDO HMI 2011-08-10 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.63 | 38.97 | 0.83 | 19.99 | 19.46 | 222.76 | 5.89 | 337.32 | 0.2552 | -141.4 | -320.6 | |
|
previous
or next observation for the same group /

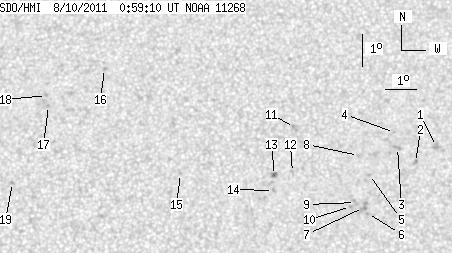

back to the solar disc SDO HMI 2011-08-10 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.24 | 0.00 | 2.19 | 20.02 | 226.74 | 9.87 | 325.88 | 0.2884 | -788.0 | -648.7 | |
| 0.00 | 1.99 | 0.00 | 1.02 | 19.53 | 226.02 | 9.15 | 326.81 | 0.2751 | -854.0 | -723.5 | |
| 0.00 | 3.07 | 0.00 | 1.58 | 20.01 | 225.46 | 8.59 | 329.38 | 0.2768 | -963.0 | -814.5 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 20.48 | 225.39 | 8.52 | 330.48 | 0.2829 | -742.0 | -625.9 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 19.18 | 224.51 | 7.64 | 330.60 | 0.2569 | -896.0 | -706.2 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 17.97 | 224.39 | 7.52 | 328.38 | 0.2385 | -912.0 | -689.1 | |
| 0.00 | 6.32 | 0.00 | 3.22 | 18.15 | 224.27 | 7.40 | 329.21 | 0.2401 | -995.0 | -788.8 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 19.78 | 224.18 | 7.31 | 332.80 | 0.2630 | -839.0 | -572.5 | |
| 0.00 | 2.35 | 0.00 | 1.20 | 18.31 | 224.02 | 7.15 | 330.41 | 0.2402 | -767.0 | -689.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 18.19 | 223.85 | 6.98 | 330.71 | 0.2371 | -842.0 | -658.3 | |
| 0.00 | 2.80 | 0.00 | 1.44 | 20.68 | 222.13 | 5.26 | 340.90 | 0.2633 | -510.0 | -562.2 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 19.27 | 222.02 | 5.15 | 339.27 | 0.2404 | 606.0 | 503.1 | |
| 1.63 | 3.43 | 0.83 | 1.75 | 19.18 | 221.44 | 4.56 | 341.32 | 0.2357 | 950.3 | 732.7 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 18.71 | 221.39 | 4.52 | 340.80 | 0.2280 | 880.0 | 657.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 19.26 | 218.41 | 1.54 | 353.53 | 0.2258 | 875.0 | 634.8 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 22.56 | 215.94 | -0.93 | 3.07 | 0.2807 | 758.0 | 609.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 21.39 | 214.12 | -2.75 | 9.77 | 0.2644 | 926.0 | 736.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 21.70 | 214.05 | -2.82 | 9.80 | 0.2698 | 727.0 | 560.5 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 18.97 | 213.01 | -3.87 | 16.26 | 0.2287 | 884.0 | 693.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
