SDO HMI 2011-08-10 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.92 | 0.00 | 8.46 | -15.88 | 244.08 | 27.76 | 230.62 | 0.5821 | 197.0 | 150.1 | |
|
previous
or next observation for the same group /

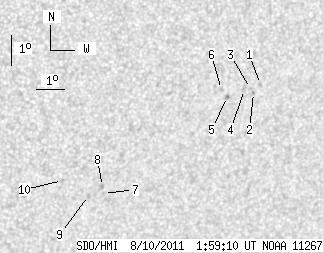

back to the solar disc SDO HMI 2011-08-10 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.56 | -14.52 | 246.82 | 30.50 | 235.19 | 0.6006 | 700.0 | 516.7 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -14.77 | 246.60 | 30.28 | 234.65 | 0.6000 | 776.0 | 685.6 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -14.63 | 246.47 | 30.15 | 234.73 | 0.5975 | 682.0 | 539.7 | |
| 0.00 | 1.72 | 0.00 | 1.06 | -14.65 | 246.26 | 29.94 | 234.51 | 0.5952 | 790.0 | 655.2 | |
| 0.00 | 2.08 | 0.00 | 1.27 | -14.85 | 245.67 | 29.35 | 233.70 | 0.5900 | 738.0 | 657.2 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -14.60 | 245.42 | 29.10 | 233.81 | 0.5853 | 619.0 | 480.4 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -17.82 | 241.69 | 25.37 | 225.60 | 0.5731 | -556.0 | -461.8 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -17.58 | 241.62 | 25.30 | 225.83 | 0.5701 | -879.0 | -699.7 | |
| 0.00 | 1.81 | 0.00 | 1.09 | -17.86 | 241.17 | 24.85 | 224.96 | 0.5682 | -799.0 | -673.2 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -17.32 | 240.18 | 23.86 | 224.53 | 0.5528 | -101.0 | -157.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
