SDO HMI 2011-08-10 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.08 | 91.38 | 24.40 | 51.99 | 19.78 | 241.91 | 26.68 | 300.31 | 0.4907 | 291.5 | 120.9 | |
|
previous
or next observation for the same group /

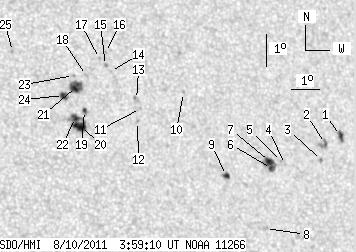

back to the solar disc SDO HMI 2011-08-10 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.70 | 5.42 | 2.23 | 3.26 | 19.13 | 248.23 | 33.01 | 294.81 | 0.5691 | -805.1 | -678.2 | |
| 0.81 | 5.51 | 0.49 | 3.29 | 18.92 | 247.61 | 32.38 | 294.75 | 0.5601 | -791.3 | -727.3 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 18.40 | 247.35 | 32.12 | 294.00 | 0.5544 | -766.0 | -672.9 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 18.35 | 245.98 | 30.76 | 294.62 | 0.5360 | -696.0 | -567.1 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 18.45 | 245.85 | 30.63 | 294.87 | 0.5348 | -732.0 | -549.4 | |
| 2.35 | 13.64 | 1.37 | 7.95 | 18.26 | 245.44 | 30.22 | 294.75 | 0.5284 | -790.8 | -735.1 | |
| 5.51 | -6.00 | 3.21 | -6.00 | 18.48 | 245.41 | 30.19 | 295.16 | 0.5290 | -910.4 | 999999 | |
| 0.00 | 3.25 | 0.00 | 1.87 | 16.42 | 244.89 | 29.67 | 291.65 | 0.5128 | -302.0 | -270.1 | |
| 2.98 | 3.88 | 1.71 | 2.23 | 18.13 | 243.76 | 28.54 | 295.50 | 0.5051 | -885.2 | -758.6 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 20.78 | 242.69 | 27.47 | 301.15 | 0.5059 | 672.0 | 525.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 20.36 | 241.05 | 25.83 | 301.69 | 0.4819 | 702.0 | 545.1 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 19.96 | 240.87 | 25.65 | 301.08 | 0.4769 | 723.0 | 551.4 | |
| 0.00 | 2.89 | 0.00 | 1.63 | 20.65 | 240.96 | 25.73 | 302.31 | 0.4826 | 691.0 | 607.8 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 21.56 | 240.19 | 24.96 | 304.70 | 0.4793 | 619.0 | 470.6 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 21.76 | 240.04 | 24.82 | 305.19 | 0.4790 | 820.0 | 733.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 22.17 | 240.12 | 24.90 | 305.87 | 0.4830 | 698.0 | 567.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 21.99 | 239.87 | 24.65 | 305.78 | 0.4785 | 680.0 | 562.7 | |
| 0.00 | 1.99 | 0.00 | 1.11 | 21.48 | 239.31 | 24.08 | 305.38 | 0.4676 | 743.0 | 536.4 | |
| 1.81 | 3.70 | 1.00 | 2.06 | 20.38 | 239.05 | 23.83 | 303.54 | 0.4562 | 669.5 | 624.9 | |
| 8.22 | 19.96 | 4.55 | 11.06 | 19.89 | 238.83 | 23.61 | 302.79 | 0.4498 | 1110.4 | 796.2 | |
| 10.84 | 12.64 | 6.04 | 7.05 | 21.15 | 238.89 | 23.67 | 305.16 | 0.4599 | 910.1 | 701.1 | |
| 3.79 | -20.00 | 2.10 | -20.00 | 20.18 | 238.70 | 23.48 | 303.49 | 0.4502 | 945.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 21.50 | 238.85 | 23.62 | 305.87 | 0.4620 | 629.0 | 569.7 | |
| 3.07 | 4.97 | 1.70 | 2.76 | 20.88 | 238.39 | 23.17 | 305.17 | 0.4515 | 1030.4 | 792.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 22.34 | 236.82 | 21.60 | 309.67 | 0.4441 | 835.0 | 586.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
