SDO HMI 2011-08-10 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.51 | 0.00 | 2.84 | -15.88 | 245.27 | 31.14 | 233.83 | 0.6192 | 89.5 | 280.3 | |
|
previous
or next observation for the same group /

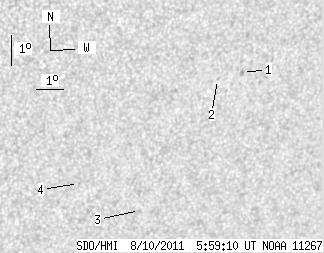

back to the solar disc SDO HMI 2011-08-10 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 1.37 | -14.64 | 246.61 | 32.48 | 236.67 | 0.6241 | 760.0 | 652.5 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -14.81 | 245.71 | 31.58 | 235.69 | 0.6151 | 664.0 | 449.3 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -19.00 | 243.58 | 29.45 | 228.25 | 0.6254 | -393.0 | -410.0 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -17.97 | 241.17 | 27.04 | 227.19 | 0.5916 | -673.0 | -516.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
