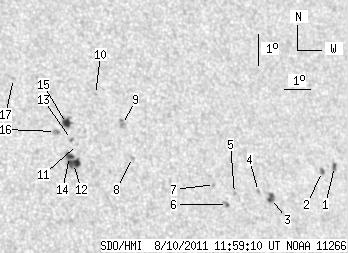

SDO HMI 2011-08-10 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.28 | 55.98 | 14.92 | 32.98 | 19.93 | 241.38 | 30.54 | 297.85 | 0.5414 | 312.5 | 251.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-10 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.26 | 2.98 | 1.44 | 1.90 | 19.15 | 248.59 | 37.75 | 292.80 | 0.6296 | -666.5 | -616.2 | |
| 1.08 | 2.62 | 0.68 | 1.65 | 19.02 | 248.07 | 37.23 | 292.80 | 0.6227 | -805.8 | -635.4 | |
| 4.42 | 6.05 | 2.71 | 3.71 | 18.32 | 245.86 | 35.03 | 292.54 | 0.5921 | -772.0 | -752.2 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 18.56 | 245.41 | 34.57 | 293.13 | 0.5872 | -882.0 | -667.4 | |
| 0.00 | 1.26 | 0.00 | 0.76 | 18.56 | 244.48 | 33.64 | 293.54 | 0.5750 | -725.0 | -581.6 | |
| 1.08 | 2.62 | 0.65 | 1.57 | 18.23 | 244.14 | 33.30 | 293.15 | 0.5693 | -870.8 | -831.5 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 18.88 | 243.78 | 32.94 | 294.41 | 0.5672 | -659.0 | -597.4 | |
| 0.00 | 1.26 | 0.00 | 0.74 | 19.89 | 240.90 | 30.06 | 297.75 | 0.5343 | 776.0 | 630.4 | |
| 0.00 | 4.88 | 0.00 | 2.86 | 20.94 | 240.75 | 29.91 | 299.67 | 0.5381 | 882.0 | 663.3 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 21.93 | 239.95 | 29.12 | 301.93 | 0.5339 | 763.0 | 667.5 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 20.40 | 238.96 | 28.12 | 299.96 | 0.5120 | 486.0 | 367.5 | |
| 7.59 | 14.72 | 4.35 | 8.44 | 19.81 | 238.70 | 27.86 | 299.09 | 0.5051 | 1006.2 | 803.2 | |
| 0.00 | 1.44 | 0.00 | 0.83 | 20.57 | 238.77 | 27.94 | 300.40 | 0.5106 | 639.0 | 526.2 | |
| 3.61 | -12.00 | 2.07 | -12.00 | 20.04 | 238.60 | 27.76 | 299.58 | 0.5051 | 866.6 | 999999 | |
| 5.24 | 8.67 | 3.02 | 5.00 | 21.07 | 238.69 | 27.85 | 301.37 | 0.5127 | 923.7 | 601.0 | |
| 0.00 | 3.16 | 0.00 | 1.81 | 20.84 | 238.24 | 27.40 | 301.31 | 0.5054 | 989.0 | 842.3 | |
| 0.00 | 1.81 | 0.00 | 1.03 | 22.58 | 237.05 | 26.21 | 305.39 | 0.5023 | 723.0 | 558.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
