SDO HMI 2011-08-10 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.63 | 23.12 | 0.83 | 11.97 | 18.93 | 222.66 | 11.82 | 318.94 | 0.2947 | -115.5 | 79.3 | |
|
previous
or next observation for the same group /

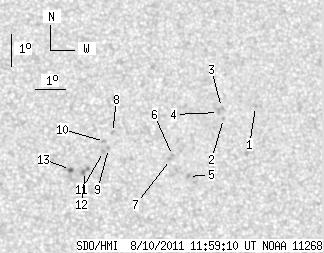

back to the solar disc SDO HMI 2011-08-10 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.67 | 20.10 | 226.63 | 15.79 | 313.37 | 0.3530 | -776.0 | -670.6 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 19.76 | 225.52 | 14.68 | 314.57 | 0.3363 | -794.0 | -590.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 20.10 | 225.48 | 14.65 | 315.40 | 0.3397 | -655.0 | -625.8 | |
| 0.00 | 1.81 | 0.00 | 0.95 | 19.95 | 225.37 | 14.53 | 315.28 | 0.3367 | -1043.0 | -820.5 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 17.99 | 224.21 | 13.37 | 312.88 | 0.3015 | -997.0 | -837.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 18.65 | 223.73 | 12.90 | 315.52 | 0.3031 | -841.0 | -776.8 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 18.53 | 223.66 | 12.82 | 315.38 | 0.3009 | -995.0 | -611.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 19.41 | 221.82 | 10.98 | 321.71 | 0.2912 | 812.0 | 594.5 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 18.91 | 221.65 | 10.82 | 320.98 | 0.2832 | 621.0 | 508.2 | |
| 0.00 | 1.90 | 0.00 | 0.98 | 19.13 | 221.54 | 10.70 | 321.79 | 0.2848 | 849.0 | 709.3 | |
| 0.00 | 2.26 | 0.00 | 1.16 | 18.82 | 221.48 | 10.65 | 321.20 | 0.2803 | 790.0 | 471.6 | |
| 0.00 | 4.24 | 0.00 | 2.18 | 18.21 | 220.86 | 10.02 | 321.37 | 0.2660 | 792.0 | 804.1 | |
| 1.63 | 2.62 | 0.83 | 1.34 | 18.28 | 220.38 | 9.54 | 322.88 | 0.2619 | 909.9 | 622.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
