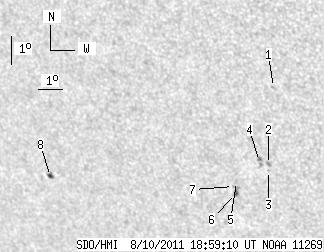

SDO HMI 2011-08-10 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.98 | 18.22 | 2.90 | 12.65 | -21.68 | 172.02 | -34.94 | 130.49 | 0.6998 | 113.6 | 253.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-10 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 1.23 | -18.78 | 175.25 | -31.71 | 129.45 | 0.6468 | 416.0 | 387.7 | |
| 0.00 | 2.26 | 0.00 | 1.51 | -21.44 | 174.45 | -32.52 | 132.00 | 0.6756 | 809.0 | 673.8 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -21.64 | 174.39 | -32.57 | 132.20 | 0.6777 | 575.0 | 522.6 | |
| 0.00 | 4.33 | 0.00 | 2.91 | -21.35 | 174.12 | -32.85 | 131.62 | 0.6781 | 593.0 | 552.2 | |
| 0.00 | 1.17 | 0.00 | 0.81 | -22.11 | 173.01 | -33.95 | 131.61 | 0.6943 | -510.0 | -502.8 | |
| 1.99 | 3.52 | 1.37 | 2.43 | -22.53 | 172.86 | -34.11 | 131.97 | 0.6990 | -742.0 | -719.4 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -22.29 | 172.84 | -34.12 | 131.69 | 0.6973 | -522.0 | -450.6 | |
| 1.99 | 3.43 | 1.53 | 2.65 | -22.51 | 165.11 | -41.85 | 126.56 | 0.7696 | 435.7 | 442.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
