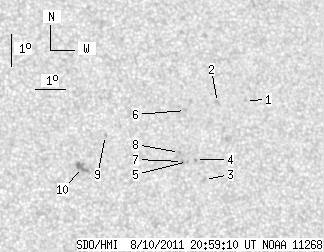

SDO HMI 2011-08-10 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.84 | 0.00 | 10.52 | 18.64 | 222.85 | 16.99 | 308.24 | 0.3534 | -469.9 | -12.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-10 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.34 | 20.12 | 226.32 | 20.46 | 306.62 | 0.4106 | -660.0 | -512.0 | |
| 0.00 | 2.08 | 0.00 | 1.12 | 20.10 | 225.35 | 19.49 | 307.78 | 0.3981 | -719.0 | -660.0 | |
| 0.00 | 1.99 | 0.00 | 1.06 | 17.72 | 224.62 | 18.77 | 303.40 | 0.3686 | -767.0 | -596.4 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 18.35 | 224.39 | 18.53 | 305.18 | 0.3707 | -900.0 | -777.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 18.30 | 224.11 | 18.26 | 305.43 | 0.3666 | -960.0 | -735.7 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 19.89 | 224.23 | 18.37 | 308.84 | 0.3821 | -803.0 | -695.2 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 18.30 | 223.94 | 18.09 | 305.67 | 0.3644 | -1004.0 | -815.5 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 18.59 | 223.87 | 18.02 | 306.42 | 0.3659 | -876.0 | -726.2 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 19.19 | 221.45 | 15.60 | 311.59 | 0.3410 | 941.0 | 703.8 | |
| 0.00 | 7.76 | 0.00 | 4.06 | 18.22 | 220.60 | 14.74 | 310.76 | 0.3206 | 1049.0 | 857.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
