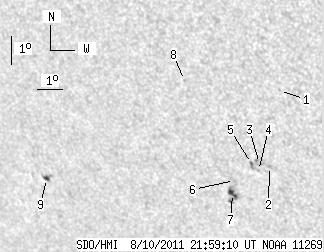

SDO HMI 2011-08-10 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.77 | 28.50 | 4.72 | 19.44 | -21.88 | 171.83 | -33.48 | 131.87 | 0.6879 | 97.9 | 96.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-10 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.34 | -18.79 | 175.54 | -29.77 | 131.21 | 0.6270 | 576.0 | 478.5 | |
| 0.00 | 1.44 | 0.00 | 0.95 | -21.41 | 174.60 | -30.71 | 133.56 | 0.6582 | 905.0 | 682.3 | |
| 0.00 | 3.52 | 0.00 | 2.32 | -21.33 | 174.24 | -31.07 | 133.14 | 0.6610 | 741.0 | 689.9 | |
| 0.00 | 1.17 | 0.00 | 0.78 | -21.58 | 174.14 | -31.16 | 133.34 | 0.6640 | 536.0 | 392.2 | |
| 0.63 | 3.34 | 0.42 | 2.21 | -21.35 | 173.93 | -31.38 | 132.89 | 0.6641 | 522.0 | 516.4 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -21.98 | 173.11 | -32.19 | 132.93 | 0.6769 | -252.0 | -219.7 | |
| 4.06 | 11.55 | 2.74 | 7.80 | -22.44 | 172.92 | -32.39 | 133.29 | 0.6824 | -871.9 | -566.3 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -18.67 | 171.98 | -33.33 | 127.98 | 0.6626 | -657.0 | -512.1 | |
| 2.08 | 5.14 | 1.56 | 3.85 | -22.46 | 165.31 | -39.99 | 127.67 | 0.7527 | 606.3 | 492.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
