SDO HMI 2011-08-10 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.45 | 34.38 | 9.73 | 23.00 | -21.70 | 172.24 | -31.96 | 132.94 | 0.6721 | 22.5 | 261.2 | |
|
previous
or next observation for the same group /

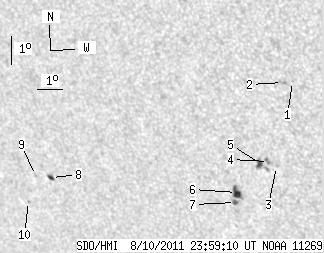

back to the solar disc SDO HMI 2011-08-10 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.51 | -18.50 | 175.81 | -28.39 | 132.17 | 0.6106 | 747.0 | 511.8 | |
| 0.00 | 3.07 | 0.00 | 1.92 | -18.55 | 175.43 | -28.77 | 131.87 | 0.6150 | 671.0 | 562.3 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -21.44 | 174.62 | -29.58 | 134.63 | 0.6479 | 768.0 | 641.0 | |
| 0.00 | 3.52 | 0.00 | 2.29 | -21.28 | 174.35 | -29.85 | 134.20 | 0.6491 | 887.0 | 817.4 | |
| 3.79 | 8.12 | 2.47 | 5.30 | -21.37 | 173.99 | -30.21 | 133.97 | 0.6533 | 639.5 | 490.9 | |
| 6.59 | 9.66 | 4.40 | 6.45 | -22.44 | 172.86 | -31.34 | 134.19 | 0.6728 | -895.5 | -668.9 | |
| 1.99 | 3.16 | 1.33 | 2.12 | -22.79 | 172.73 | -31.47 | 134.48 | 0.6769 | -604.3 | -468.8 | |
| 2.08 | 3.52 | 1.53 | 2.59 | -22.43 | 165.40 | -38.80 | 128.44 | 0.7416 | 471.8 | 424.6 | |
| 0.00 | 0.90 | 0.00 | 0.67 | -22.41 | 164.73 | -39.47 | 127.97 | 0.7477 | 328.0 | 325.2 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -23.36 | 164.09 | -40.11 | 128.62 | 0.7592 | -605.0 | -533.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
