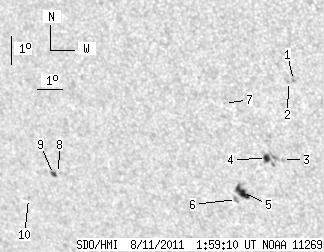

SDO HMI 2011-08-11 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.53 | 35.56 | 10.34 | 23.45 | -21.84 | 172.48 | -30.62 | 134.26 | 0.6609 | -54.6 | 247.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-11 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.73 | -18.61 | 175.62 | -27.48 | 133.23 | 0.6024 | 783.0 | 679.5 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -18.65 | 175.44 | -27.66 | 133.10 | 0.6047 | 631.0 | 552.7 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -21.33 | 174.69 | -28.41 | 135.63 | 0.6360 | 715.0 | 618.2 | |
| 3.61 | 12.37 | 2.33 | 7.96 | -21.33 | 174.10 | -29.00 | 135.06 | 0.6416 | 725.3 | 619.6 | |
| 9.75 | 12.73 | 6.44 | 8.40 | -22.57 | 172.91 | -30.19 | 135.38 | 0.6635 | -855.7 | -585.2 | |
| 0.00 | 2.26 | 0.00 | 1.50 | -22.83 | 172.61 | -30.49 | 135.41 | 0.6684 | -744.0 | -528.7 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -19.53 | 172.91 | -30.19 | 131.77 | 0.6377 | 515.0 | 401.4 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -22.40 | 165.65 | -37.45 | 129.33 | 0.7292 | 765.0 | 628.4 | |
| 2.17 | 2.80 | 1.57 | 2.03 | -22.45 | 165.42 | -37.68 | 129.23 | 0.7315 | 609.8 | 587.1 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -23.38 | 164.06 | -39.04 | 129.34 | 0.7499 | -749.0 | -611.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
