SDO HMI 2011-08-11 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.15 | 25.08 | 3.21 | 16.35 | 19.80 | 241.77 | 39.22 | 293.39 | 0.6491 | 204.4 | 89.9 | |
|
previous
or next observation for the same group /

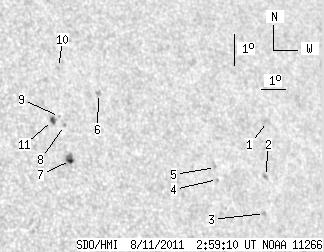

back to the solar disc SDO HMI 2011-08-11 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.34 | 0.00 | 2.36 | 20.12 | 247.24 | 44.68 | 292.02 | 0.7146 | -192.0 | -316.8 | |
| 0.00 | 2.71 | 0.00 | 1.88 | 18.43 | 246.57 | 44.02 | 289.84 | 0.7031 | -709.0 | -526.9 | |
| 0.00 | 1.62 | 0.00 | 1.12 | 17.30 | 246.17 | 43.62 | 288.33 | 0.6962 | -684.0 | -599.4 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 18.49 | 244.48 | 41.93 | 290.45 | 0.6786 | -496.0 | -461.2 | |
| 0.00 | 0.54 | 0.00 | 0.36 | 18.87 | 244.50 | 41.95 | 290.98 | 0.6798 | -579.0 | -501.5 | |
| 0.00 | 2.08 | 0.00 | 1.33 | 21.49 | 240.36 | 37.81 | 296.30 | 0.6385 | 827.0 | 579.9 | |
| 2.17 | 7.67 | 1.35 | 4.78 | 19.49 | 238.65 | 36.10 | 293.91 | 0.6099 | 873.1 | 658.0 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 20.59 | 238.71 | 36.16 | 295.62 | 0.6148 | 632.0 | 534.5 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 20.88 | 238.59 | 36.04 | 296.13 | 0.6145 | 562.0 | 420.2 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 22.41 | 238.99 | 36.44 | 298.30 | 0.6259 | 572.0 | 436.3 | |
| 2.98 | 3.34 | 1.86 | 2.09 | 20.77 | 238.28 | 35.73 | 296.10 | 0.6102 | 743.9 | 707.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
