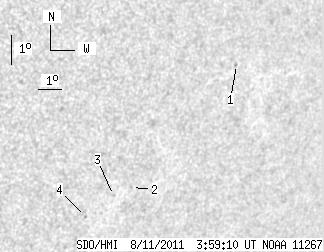

SDO HMI 2011-08-11 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.14 | 0.00 | 2.98 | -16.97 | 242.39 | 40.39 | 239.01 | 0.7256 | -302.5 | -206.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-11 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.86 | -14.08 | 245.39 | 43.39 | 244.31 | 0.7417 | 568.0 | 476.5 | |
| 0.00 | 1.17 | 0.00 | 0.84 | -17.82 | 241.89 | 39.88 | 237.70 | 0.7245 | -589.0 | -397.1 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -18.03 | 241.20 | 39.19 | 237.01 | 0.7187 | -593.0 | -527.5 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -18.66 | 240.21 | 38.21 | 235.60 | 0.7125 | -596.0 | -556.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
