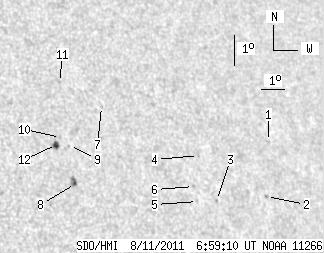

SDO HMI 2011-08-11 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.70 | 19.84 | 3.01 | 13.18 | 19.96 | 240.98 | 40.62 | 293.11 | 0.6666 | 39.2 | 86.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-11 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.86 | 20.09 | 247.47 | 47.11 | 291.41 | 0.7414 | -651.0 | -538.5 | |
| 0.00 | 1.44 | 0.00 | 1.04 | 18.41 | 246.75 | 46.39 | 289.30 | 0.7302 | -684.0 | -509.1 | |
| 0.00 | 1.08 | 0.00 | 0.75 | 18.46 | 244.48 | 44.12 | 289.86 | 0.7044 | -491.0 | -443.0 | |
| 0.00 | 1.08 | 0.00 | 0.75 | 19.91 | 244.16 | 43.80 | 291.96 | 0.7040 | -464.0 | -361.0 | |
| 0.00 | 1.08 | 0.00 | 0.74 | 18.49 | 243.65 | 43.28 | 290.10 | 0.6947 | -680.0 | -526.8 | |
| 0.00 | 0.63 | 0.00 | 0.43 | 18.97 | 243.62 | 43.26 | 290.78 | 0.6955 | -640.0 | -501.0 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 21.72 | 240.53 | 40.17 | 295.70 | 0.6672 | 282.0 | 252.1 | |
| 1.63 | 5.06 | 1.04 | 3.24 | 19.41 | 238.72 | 38.36 | 292.91 | 0.6377 | 780.5 | 769.7 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 20.60 | 238.82 | 38.46 | 294.69 | 0.6430 | 514.0 | 472.5 | |
| 0.00 | 1.17 | 0.00 | 0.76 | 20.87 | 238.53 | 38.16 | 295.21 | 0.6404 | 260.0 | 176.1 | |
| 0.00 | 1.17 | 0.00 | 0.77 | 22.59 | 239.03 | 38.67 | 297.56 | 0.6530 | 709.0 | 564.7 | |
| 3.07 | 4.79 | 1.97 | 3.07 | 20.67 | 238.30 | 37.94 | 294.99 | 0.6369 | 783.2 | 534.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
