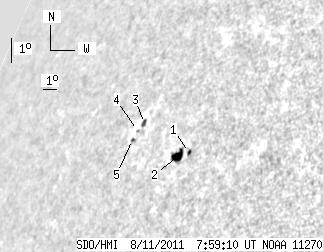

SDO HMI 2011-08-11 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.92 | 20.94 | 14.58 | 23.83 | 22.98 | 135.21 | -64.61 | 67.53 | 0.9014 | -178.2 | -15.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-11 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.63 | 2.44 | 1.75 | 2.62 | 22.96 | 136.91 | -62.90 | 67.43 | 0.8896 | -552.3 | -469.3 | |
| 8.22 | 12.55 | 9.03 | 13.81 | 22.80 | 136.24 | -63.58 | 67.67 | 0.8944 | -414.6 | -151.0 | |
| 3.07 | 3.43 | 3.80 | 4.24 | 23.51 | 132.85 | -66.96 | 67.11 | 0.9176 | 327.9 | 341.0 | |
| 0.00 | 1.26 | 0.00 | 1.58 | 23.25 | 132.52 | -67.29 | 67.42 | 0.9196 | 244.0 | 246.8 | |
| 0.00 | 1.26 | 0.00 | 1.58 | 22.94 | 132.41 | -67.41 | 67.75 | 0.9203 | 265.0 | 282.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
