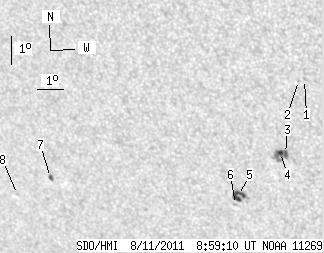

SDO HMI 2011-08-11 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.82 | 30.06 | 8.83 | 19.07 | -21.84 | 172.62 | -26.64 | 138.17 | 0.6243 | -146.4 | 282.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-11 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.54 | -18.57 | 175.77 | -23.50 | 137.60 | 0.5626 | 712.0 | 516.1 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -18.62 | 175.55 | -23.71 | 137.39 | 0.5651 | 439.0 | 457.2 | |
| 1.17 | 12.55 | 0.72 | 7.77 | -21.13 | 174.68 | -24.58 | 139.43 | 0.5988 | 975.4 | 699.7 | |
| 2.17 | -3.00 | 1.34 | -3.00 | -21.10 | 174.51 | -24.76 | 139.20 | 0.6001 | 957.6 | 999999 | |
| 8.76 | 11.47 | 5.59 | 7.31 | -22.68 | 172.67 | -26.59 | 139.02 | 0.6321 | -845.5 | -710.9 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -23.00 | 172.49 | -26.77 | 139.20 | 0.6367 | -399.0 | -349.6 | |
| 1.72 | 2.53 | 1.18 | 1.74 | -22.48 | 165.55 | -33.72 | 132.26 | 0.6953 | 615.3 | 393.7 | |
| 0.00 | 0.99 | 0.00 | 0.70 | -23.18 | 164.02 | -35.24 | 131.85 | 0.7145 | -616.0 | -519.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
