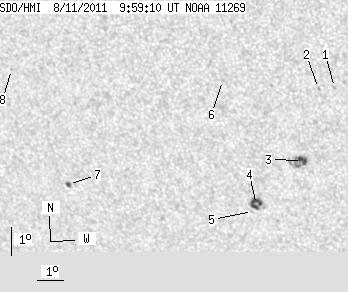

SDO HMI 2011-08-11 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.81 | 35.02 | 9.36 | 22.00 | -21.54 | 172.86 | -25.86 | 138.63 | 0.6147 | -66.4 | 140.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-11 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.86 | -18.60 | 176.16 | -22.55 | 138.77 | 0.5537 | 686.0 | 536.7 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -18.66 | 175.60 | -23.12 | 138.15 | 0.5598 | 619.0 | 415.4 | |
| 5.33 | 14.63 | 3.27 | 9.01 | -21.14 | 174.64 | -24.08 | 140.01 | 0.5943 | 957.7 | 633.0 | |
| 8.04 | 12.28 | 5.10 | 7.80 | -22.75 | 172.66 | -26.05 | 139.67 | 0.6280 | -870.6 | -754.0 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -23.01 | 172.46 | -26.25 | 139.74 | 0.6323 | -232.0 | -297.6 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -18.56 | 172.22 | -26.50 | 134.19 | 0.5921 | -664.0 | -544.9 | |
| 1.44 | 2.53 | 0.99 | 1.72 | -22.48 | 165.59 | -33.12 | 132.74 | 0.6898 | 551.2 | 539.6 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -18.66 | 164.33 | -34.39 | 127.15 | 0.6737 | -600.0 | -450.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
