SDO HMI 2011-08-11 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.29 | 20.86 | 11.91 | 22.94 | 23.02 | 135.14 | -63.58 | 67.41 | 0.8941 | -259.3 | 154.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-11 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

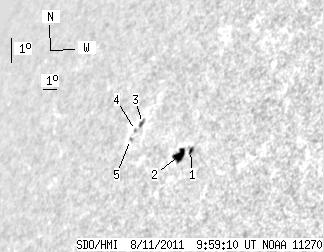

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.26 | 2.80 | 2.35 | 2.91 | 23.03 | 136.91 | -61.80 | 67.25 | 0.8814 | -530.6 | -429.5 | |
| 9.03 | 11.47 | 9.56 | 12.15 | 22.81 | 136.31 | -62.41 | 67.55 | 0.8858 | -386.8 | -182.2 | |
| 0.00 | 3.52 | 0.00 | 4.19 | 23.52 | 132.85 | -65.87 | 67.04 | 0.9106 | 375.0 | 327.5 | |
| 0.00 | 1.63 | 0.00 | 1.95 | 23.26 | 132.53 | -66.19 | 67.34 | 0.9126 | 320.0 | 234.3 | |
| 0.00 | 1.44 | 0.00 | 1.74 | 22.95 | 132.41 | -66.31 | 67.68 | 0.9132 | 384.0 | 335.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
