SDO HMI 2011-08-11 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.54 | 26.18 | 14.22 | 28.01 | 22.48 | 135.46 | -62.70 | 67.95 | 0.8874 | -278.9 | 8.9 | |
|
previous
or next observation for the same group /

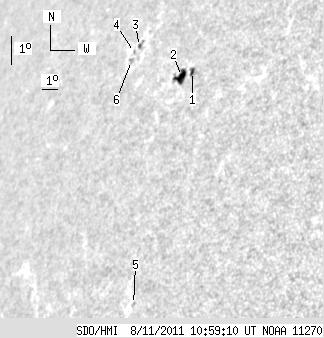

back to the solar disc SDO HMI 2011-08-11 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.71 | 3.34 | 2.77 | 3.42 | 23.06 | 136.97 | -61.19 | 67.16 | 0.8768 | -525.2 | -535.9 | |
| 9.48 | 14.08 | 9.86 | 14.68 | 22.84 | 136.38 | -61.79 | 67.47 | 0.8812 | -412.6 | -135.2 | |
| 1.35 | 3.07 | 1.59 | 3.59 | 23.46 | 132.68 | -65.49 | 67.08 | 0.9080 | 324.9 | 341.3 | |
| 0.00 | 1.26 | 0.00 | 1.49 | 23.24 | 132.48 | -65.68 | 67.33 | 0.9092 | 273.0 | 234.9 | |
| 0.00 | 1.99 | 0.00 | 1.96 | 15.70 | 137.71 | -60.46 | 75.55 | 0.8669 | -535.0 | -399.8 | |
| 0.00 | 2.44 | 0.00 | 2.87 | 22.98 | 132.49 | -65.68 | 67.61 | 0.9090 | 465.0 | 303.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
