SDO HMI 2011-08-11 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.81 | 0.00 | 6.22 | 17.96 | 223.62 | 28.77 | 294.83 | 0.5066 | -255.7 | -137.6 | |
|
previous
or next observation for the same group /

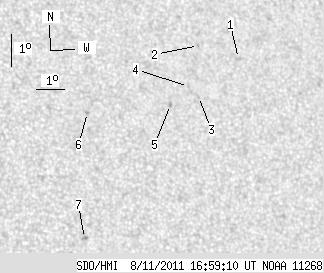

back to the solar disc SDO HMI 2011-08-11 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.62 | 0.00 | 1.55 | 19.44 | 226.46 | 31.61 | 295.97 | 0.5519 | -669.0 | -406.8 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 19.93 | 225.06 | 30.21 | 297.63 | 0.5360 | -642.0 | -541.2 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 18.35 | 224.74 | 29.89 | 295.00 | 0.5240 | -757.0 | -610.4 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 18.68 | 224.44 | 29.58 | 295.78 | 0.5214 | -745.0 | -601.7 | |
| 0.00 | 1.98 | 0.00 | 1.14 | 18.15 | 223.68 | 28.83 | 295.28 | 0.5087 | -831.0 | -608.0 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 18.05 | 220.67 | 25.82 | 297.12 | 0.4671 | 967.0 | 759.1 | |
| 0.00 | 2.07 | 0.00 | 1.14 | 14.19 | 220.03 | 25.18 | 289.40 | 0.4391 | 887.0 | 737.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
