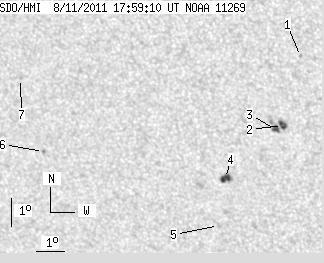

SDO HMI 2011-08-11 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.52 | 27.86 | 8.75 | 16.87 | -21.77 | 173.16 | -21.13 | 144.39 | 0.5759 | 131.6 | 238.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-11 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.63 | -18.61 | 175.67 | -18.63 | 144.07 | 0.5180 | 699.0 | 555.0 | |
| 4.15 | 14.97 | 2.46 | 8.90 | -20.98 | 174.76 | -19.54 | 145.50 | 0.5535 | 948.1 | 572.4 | |
| 4.15 | -2.00 | 2.47 | -2.00 | -21.13 | 174.49 | -19.80 | 145.31 | 0.5574 | 706.6 | 999999 | |
| 6.22 | 7.85 | 3.82 | 4.82 | -22.91 | 172.47 | -21.83 | 144.63 | 0.5940 | -876.9 | -670.0 | |
| 0.00 | 1.89 | 0.00 | 1.19 | -24.58 | 171.91 | -22.38 | 145.69 | 0.6167 | -574.0 | -487.8 | |
| 0.00 | 1.35 | 0.00 | 0.87 | -22.30 | 165.96 | -28.34 | 136.84 | 0.6443 | 910.0 | 719.7 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -19.83 | 165.63 | -28.67 | 133.59 | 0.6254 | -85.0 | -134.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
