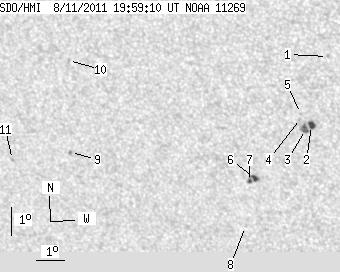

SDO HMI 2011-08-11 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.99 | 25.78 | 7.77 | 15.56 | -21.64 | 172.54 | -20.64 | 144.99 | 0.5709 | 143.3 | 63.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-11 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.57 | -18.60 | 175.61 | -17.58 | 145.62 | 0.5089 | 729.0 | 599.5 | |
| 4.42 | 11.27 | 2.61 | 6.66 | -20.96 | 174.79 | -18.40 | 147.06 | 0.5442 | 961.0 | 668.0 | |
| 3.79 | -2.00 | 2.24 | -2.00 | -21.11 | 174.56 | -18.62 | 146.90 | 0.5477 | 764.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -20.73 | 174.44 | -18.75 | 146.33 | 0.5443 | 254.0 | 338.1 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -20.56 | 174.46 | -18.73 | 146.17 | 0.5421 | 441.0 | 417.1 | |
| 3.07 | 7.13 | 1.87 | 4.34 | -22.88 | 172.53 | -20.66 | 146.07 | 0.5844 | -893.8 | -748.7 | |
| 1.71 | -6.00 | 1.05 | -6.00 | -22.99 | 172.34 | -20.85 | 145.94 | 0.5872 | -733.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -24.59 | 171.92 | -21.27 | 147.04 | 0.6084 | -662.0 | -556.6 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -22.30 | 166.01 | -27.18 | 138.00 | 0.6339 | 887.0 | 713.8 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -19.14 | 166.54 | -26.65 | 134.79 | 0.5992 | -690.0 | -475.2 | |
| 0.00 | 1.26 | 0.00 | 0.83 | -22.67 | 163.75 | -29.44 | 136.22 | 0.6577 | -621.0 | -541.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
