SDO HMI 2011-08-11 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.19 | 19.55 | 9.19 | 17.93 | 22.70 | 136.09 | -57.10 | 67.10 | 0.8427 | -359.8 | -136.4 | |
|
previous
or next observation for the same group /

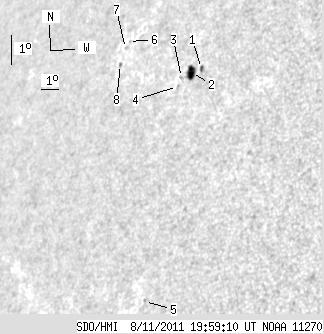

back to the solar disc SDO HMI 2011-08-11 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.71 | 2.25 | 1.53 | 2.01 | 23.22 | 137.19 | -56.00 | 66.33 | 0.8340 | -566.2 | -465.7 | |
| 8.48 | 11.27 | 7.66 | 10.18 | 23.04 | 136.71 | -56.48 | 66.61 | 0.8380 | -574.2 | -296.6 | |
| 0.00 | 1.17 | 0.00 | 1.07 | 22.84 | 136.23 | -56.95 | 66.92 | 0.8419 | -397.0 | -247.1 | |
| 0.00 | 1.26 | 0.00 | 1.15 | 22.54 | 136.18 | -57.01 | 67.27 | 0.8420 | -315.0 | -238.0 | |
| 0.00 | 0.99 | 0.00 | 0.86 | 15.86 | 137.76 | -55.43 | 75.13 | 0.8217 | -497.0 | -482.8 | |
| 0.00 | 0.45 | 0.00 | 0.46 | 23.64 | 132.24 | -60.95 | 66.49 | 0.8754 | 409.0 | 366.8 | |
| 0.00 | 0.90 | 0.00 | 0.92 | 23.41 | 132.21 | -60.98 | 66.75 | 0.8753 | 242.0 | 196.3 | |
| 0.00 | 1.26 | 0.00 | 1.28 | 22.89 | 132.27 | -60.92 | 67.33 | 0.8745 | 357.0 | 300.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
