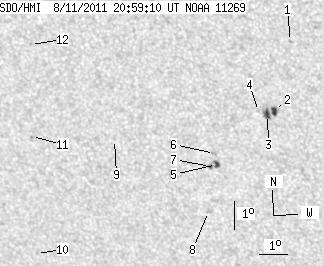

SDO HMI 2011-08-11 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.18 | 27.67 | 7.24 | 16.62 | -21.87 | 172.83 | -19.80 | 146.25 | 0.5663 | 30.3 | -116.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-11 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.77 | -18.57 | 175.63 | -17.00 | 146.47 | 0.5038 | 608.0 | 467.9 | |
| 3.79 | 4.78 | 2.23 | 2.81 | -20.94 | 174.82 | -17.81 | 147.87 | 0.5393 | 951.3 | 692.8 | |
| 4.15 | 6.67 | 2.44 | 3.93 | -21.08 | 174.56 | -18.07 | 147.66 | 0.5431 | 780.0 | 620.4 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -20.99 | 174.27 | -18.37 | 147.14 | 0.5443 | 582.0 | 487.2 | |
| 2.89 | 7.04 | 1.75 | 4.27 | -22.89 | 172.54 | -20.09 | 146.80 | 0.5802 | -863.9 | -688.3 | |
| 0.00 | 2.07 | 0.00 | 1.25 | -22.50 | 172.53 | -20.11 | 146.39 | 0.5759 | -712.0 | -534.3 | |
| 1.35 | -5.00 | 0.82 | -5.00 | -22.97 | 172.32 | -20.32 | 146.59 | 0.5828 | -722.9 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.01 | -24.56 | 171.98 | -20.65 | 147.76 | 0.6035 | -572.0 | -501.8 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -22.18 | 169.04 | -23.59 | 141.77 | 0.6011 | -658.0 | -499.5 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -26.39 | 165.24 | -27.39 | 142.19 | 0.6745 | -632.0 | -477.5 | |
| 0.00 | 0.63 | 0.00 | 0.40 | -22.23 | 166.02 | -26.61 | 138.51 | 0.6282 | 573.0 | 535.7 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -19.07 | 166.58 | -26.06 | 135.33 | 0.5928 | -647.0 | -567.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
