SDO HMI 2011-08-11 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.27 | 17.94 | 9.89 | 15.82 | 22.84 | 136.58 | -55.50 | 66.70 | 0.8291 | -423.7 | -225.3 | |
|
previous
or next observation for the same group /

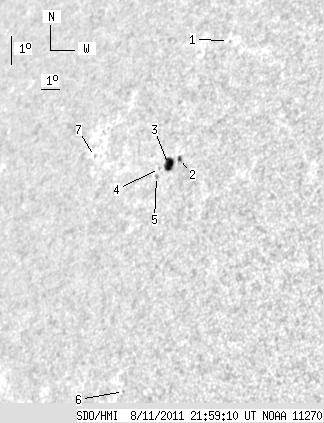

back to the solar disc SDO HMI 2011-08-11 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.32 | 27.19 | 137.46 | -54.63 | 61.36 | 0.8286 | 258.0 | 328.8 | |
| 1.71 | 2.80 | 1.49 | 2.43 | 23.29 | 137.20 | -54.88 | 66.06 | 0.8241 | -626.7 | -508.2 | |
| 9.56 | 10.82 | 8.40 | 9.51 | 23.05 | 136.71 | -55.37 | 66.43 | 0.8282 | -564.4 | -274.4 | |
| 0.00 | 0.99 | 0.00 | 0.88 | 22.89 | 136.29 | -55.80 | 66.70 | 0.8317 | -289.0 | -216.3 | |
| 0.00 | 1.53 | 0.00 | 1.36 | 22.63 | 136.27 | -55.81 | 67.01 | 0.8315 | -348.0 | -246.4 | |
| 0.00 | 0.72 | 0.00 | 0.61 | 15.94 | 137.78 | -54.31 | 74.96 | 0.8108 | -582.0 | -527.6 | |
| 0.00 | 0.72 | 0.00 | 0.71 | 22.90 | 132.22 | -59.86 | 67.21 | 0.8661 | 327.0 | 265.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
