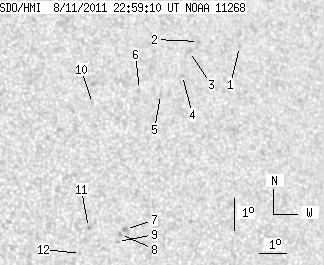

SDO HMI 2011-08-11 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.67 | 0.00 | 9.78 | 16.77 | 222.75 | 31.22 | 291.21 | 0.5352 | -286.7 | -347.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-11 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.72 | 19.45 | 226.65 | 35.12 | 294.22 | 0.5971 | -460.0 | -456.5 | |
| 0.00 | 1.17 | 0.00 | 0.71 | 19.70 | 225.11 | 33.58 | 295.35 | 0.5784 | -714.0 | -664.3 | |
| 0.00 | 2.71 | 0.00 | 1.63 | 19.41 | 224.70 | 33.17 | 295.07 | 0.5718 | -119.0 | -225.2 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 18.68 | 224.26 | 32.73 | 294.05 | 0.5631 | -712.0 | -545.2 | |
| 0.00 | 1.35 | 0.00 | 0.80 | 18.15 | 223.32 | 31.79 | 293.59 | 0.5483 | -694.0 | -533.3 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 18.34 | 222.57 | 31.04 | 294.32 | 0.5392 | -693.0 | -614.3 | |
| 0.00 | 2.80 | 0.00 | 1.60 | 14.08 | 221.32 | 29.79 | 286.96 | 0.5058 | -741.0 | -653.7 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 13.93 | 221.12 | 29.59 | 286.75 | 0.5025 | -806.0 | -691.3 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 13.73 | 220.98 | 29.45 | 286.40 | 0.4999 | -593.0 | -432.7 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 18.01 | 220.76 | 29.23 | 294.71 | 0.5133 | 593.0 | 460.5 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 14.21 | 220.01 | 28.48 | 287.75 | 0.4874 | 691.0 | 646.1 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 13.43 | 219.62 | 28.09 | 286.33 | 0.4792 | 808.0 | 676.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
