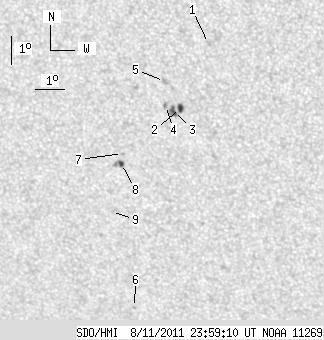

SDO HMI 2011-08-11 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.38 | 28.06 | 6.09 | 16.51 | -21.52 | 174.03 | -16.95 | 149.74 | 0.5398 | 254.4 | 151.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-11 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.35 | 0.00 | 1.33 | -18.69 | 175.99 | -14.99 | 149.83 | 0.4895 | 762.0 | 510.0 | |
| 3.61 | 4.60 | 2.10 | 2.68 | -20.93 | 174.83 | -16.15 | 150.32 | 0.5269 | 960.8 | 785.7 | |
| 4.33 | 6.86 | 2.53 | 4.00 | -21.04 | 174.58 | -16.40 | 150.06 | 0.5301 | 786.1 | 587.4 | |
| 0.00 | 2.26 | 0.00 | 1.32 | -20.84 | 174.33 | -16.65 | 149.49 | 0.5295 | 715.0 | 542.1 | |
| 0.00 | 3.52 | 0.00 | 2.04 | -20.02 | 174.38 | -16.59 | 148.72 | 0.5188 | 800.0 | 630.7 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -28.07 | 172.18 | -18.80 | 153.15 | 0.6318 | -471.0 | -447.2 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -22.56 | 172.64 | -18.34 | 148.80 | 0.5632 | -722.0 | -616.6 | |
| 2.44 | 5.50 | 1.46 | 3.31 | -22.91 | 172.55 | -18.43 | 149.03 | 0.5680 | -982.8 | -782.9 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -24.62 | 171.94 | -19.03 | 149.86 | 0.5927 | -580.0 | -516.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
