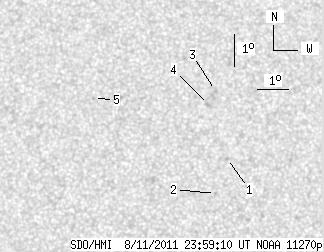

SDO HMI 2011-08-11 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.39 | 0.00 | 3.80 | 17.87 | 180.47 | -10.52 | 40.99 | 0.2661 | -826.2 | -672.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-11 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.78 | 16.70 | 181.36 | -9.62 | 41.77 | 0.2414 | -910.0 | -682.5 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 15.62 | 181.03 | -9.95 | 46.01 | 0.2324 | -893.0 | -689.5 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 18.80 | 180.85 | -10.13 | 37.71 | 0.2733 | -629.0 | -623.0 | |
| 0.00 | 2.53 | 0.00 | 1.30 | 18.36 | 180.65 | -10.33 | 39.30 | 0.2698 | -886.0 | -712.7 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 18.46 | 176.88 | -14.10 | 47.60 | 0.3143 | -813.0 | -628.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
