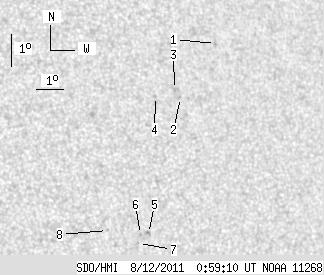

SDO HMI 2011-08-12 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.91 | 0.00 | 5.88 | 16.85 | 222.65 | 32.22 | 290.93 | 0.5492 | -544.5 | -476.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-12 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 1.05 | 19.73 | 225.16 | 34.73 | 294.85 | 0.5932 | -801.0 | -662.7 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 18.15 | 223.44 | 33.01 | 292.99 | 0.5645 | -739.0 | -566.8 | |
| 0.00 | 2.26 | 0.00 | 1.35 | 18.41 | 223.26 | 32.83 | 293.52 | 0.5632 | -578.0 | -463.4 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 18.23 | 222.50 | 32.07 | 293.58 | 0.5524 | -696.0 | -515.2 | |
| 0.00 | 1.53 | 0.00 | 0.89 | 14.05 | 221.50 | 31.07 | 286.42 | 0.5239 | -776.0 | -690.9 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 14.03 | 221.20 | 30.77 | 286.49 | 0.5197 | -802.0 | -617.9 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 13.76 | 221.09 | 30.66 | 286.02 | 0.5173 | -685.0 | -563.6 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 14.22 | 220.03 | 29.60 | 287.29 | 0.5035 | 721.0 | 590.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
