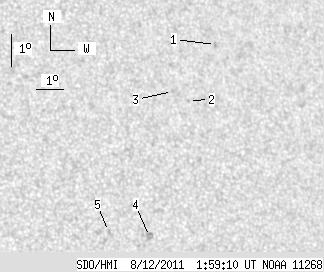

SDO HMI 2011-08-12 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.72 | 0.00 | 6.95 | 15.89 | 222.23 | 32.35 | 289.15 | 0.5477 | -387.0 | -430.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-12 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.12 | 19.76 | 225.17 | 35.29 | 294.64 | 0.6004 | -764.0 | -658.6 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 18.10 | 223.72 | 33.84 | 292.54 | 0.5753 | -625.0 | -472.9 | |
| 0.00 | 1.44 | 0.00 | 0.87 | 18.41 | 223.17 | 33.29 | 293.31 | 0.5693 | -259.0 | -310.7 | |
| 0.00 | 5.41 | 0.00 | 3.16 | 14.02 | 221.49 | 31.61 | 286.17 | 0.5316 | -775.0 | -693.4 | |
| 0.00 | 2.08 | 0.00 | 1.20 | 14.25 | 220.03 | 30.15 | 287.14 | 0.5114 | 488.0 | 411.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
