SDO HMI 2011-08-12 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.91 | 22.20 | 6.98 | 12.96 | -21.39 | 173.68 | -15.65 | 151.66 | 0.5294 | 360.7 | 495.1 | |
|
previous
or next observation for the same group /

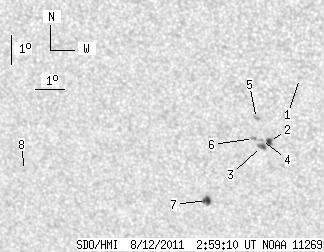

back to the solar disc SDO HMI 2011-08-12 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.56 | -18.70 | 176.06 | -13.27 | 152.77 | 0.4772 | 842.0 | 653.1 | |
| 2.89 | 4.06 | 1.67 | 2.34 | -20.87 | 174.86 | -14.47 | 152.89 | 0.5143 | 948.6 | 745.6 | |
| 3.70 | 4.15 | 2.14 | 2.40 | -21.05 | 174.58 | -14.75 | 152.61 | 0.5186 | 724.5 | 560.2 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -20.84 | 174.60 | -14.73 | 152.45 | 0.5158 | 913.0 | 609.3 | |
| 0.00 | 2.44 | 0.00 | 1.40 | -20.09 | 174.50 | -14.83 | 151.57 | 0.5067 | 933.0 | 721.4 | |
| 0.00 | 2.17 | 0.00 | 1.25 | -20.78 | 174.34 | -14.99 | 151.97 | 0.5168 | 676.0 | 545.4 | |
| 5.32 | 6.41 | 3.17 | 3.82 | -22.98 | 172.48 | -16.85 | 151.30 | 0.5578 | -917.1 | -702.7 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -22.20 | 166.22 | -23.11 | 142.37 | 0.5975 | 730.0 | 579.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
